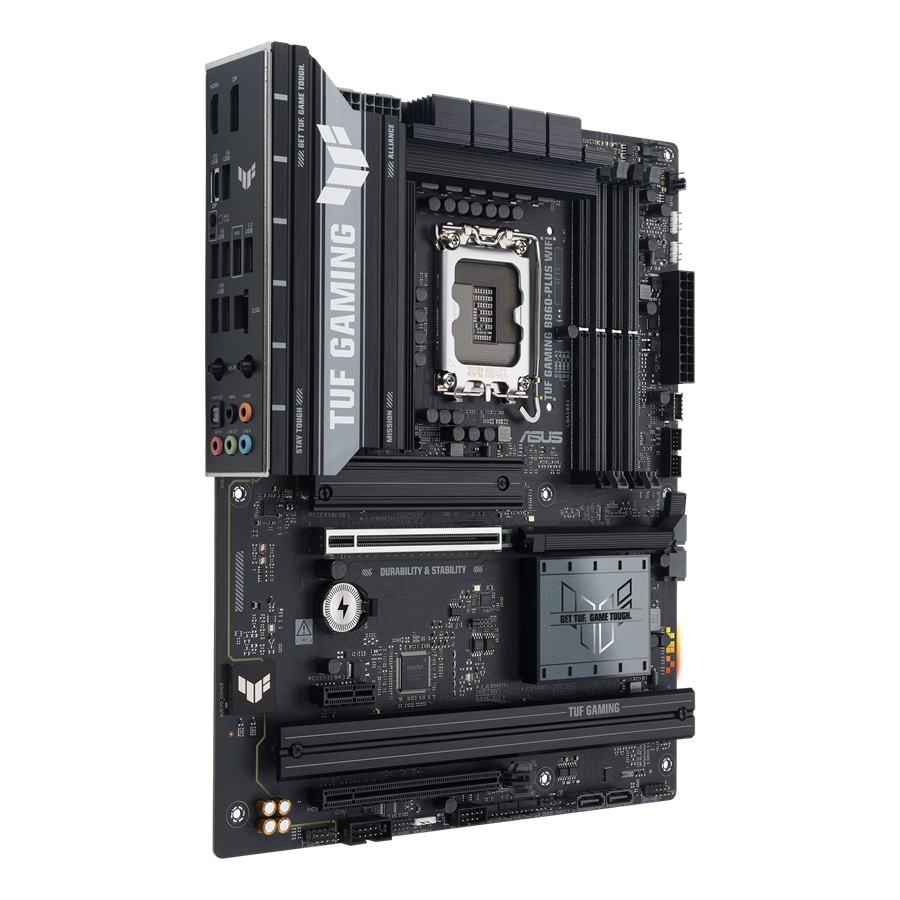

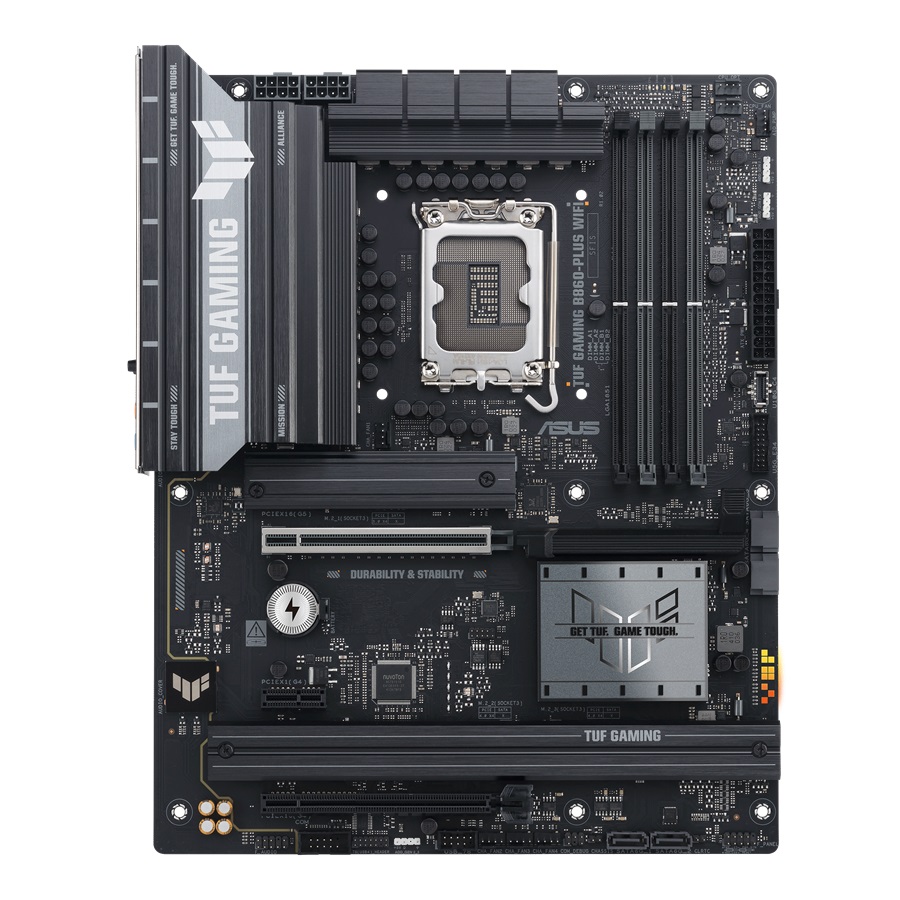

ASUS TUF GAMING B860-PLUS WIFI

* ATX Form Factor

CPU: Support Intel® Core™ Ultra Processors(Series 2)- LGA1851, Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0

Chipset: Intel® B860 Chipset

Paměť: 4 x sloty DIMM, max. 192 GB, DDR5 - Podpora až 8666+ MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)

Grafické porty:
*1 x DisplayPort
*1 x HDMI™ port
*1 x USB 20Gbps port (USB Type-C®) supports DisplayPort video output

Rozšiřující sloty:
Intel® Core™ Ultra Processors(Series 2)
*1 x PCIe 5.0 x16 slot
Intel® B860 Chipset
*1 x PCIe 4.0 x16 slot (supports x4 mode)
*1 x PCIe 4.0 x1 slot*

Úložný prostor:
Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
Intel® Core™ Ultra Processors(Series 2)
*M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
Intel® B860 Chipset
*M.2_2 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)
*M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
*4 x SATA 6Gb/s ports

Ethernet:
*1 x Realtek 2.5Gb Ethernet
*TUF LANGuard

Připojení a Bluetooth:
*Wi-Fi 7
*2x2 Wi-Fi 7 (802.11be)
*Supports 2.4/5/6GHz frequency band
*Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
*Bluetooth® v5.4

USB:
Zadní USB (Total 7 ports)
*1 x USB 20Gbps port (1 x USB Type-C®)
*2 x USB 10Gbps ports (2 x Type-A)
*3 x USB 5Gbps ports (3 x Type-A)
*2 x USB 2.0 ports (2 x Type-A)
Přední USB (Total 7 ports)
*1 x USB USB 10Gbps connector (supports USB Type-C®)
*1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
*1 x USB 2.0 header supports 2 additional USB 2.0 ports
*USB Type-C® power delivery output: max. 5V/3A

Audio:
*Realtek 7.1 Surround Sound High Definition Audio CODEC
Audio Features
*Audio Shielding
*Rear optical S/PDIF out port
*Premium audio capacitors
*Dedicated audio PCB layers
*Audio cover

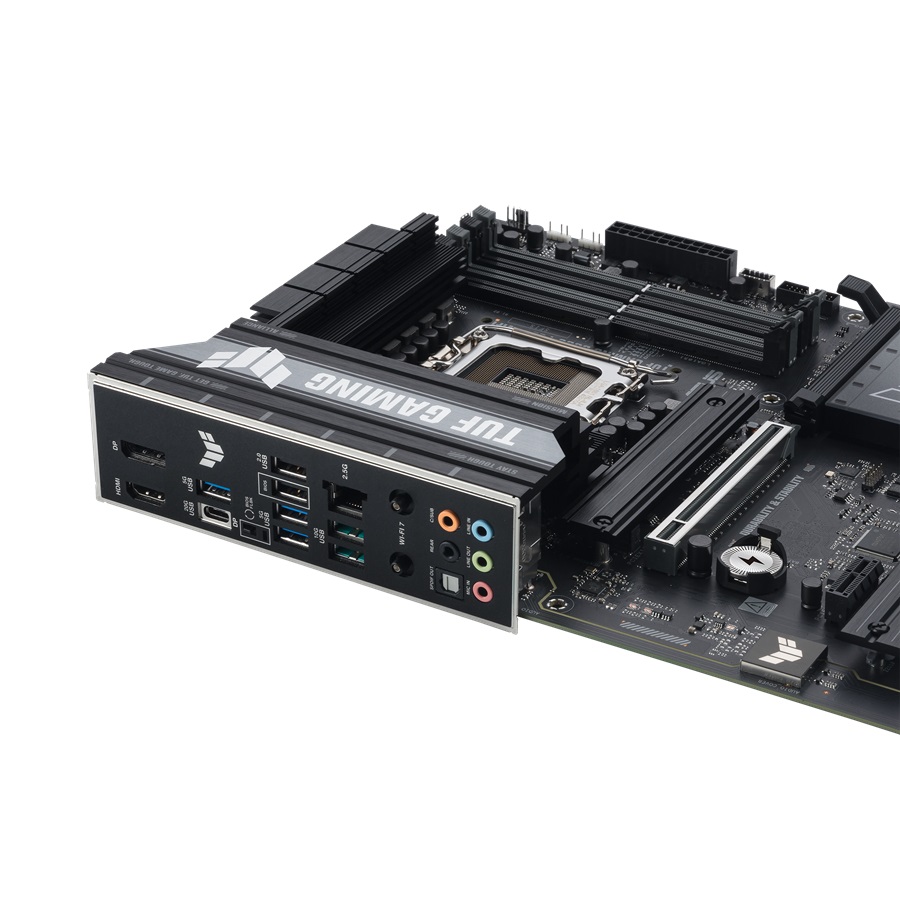

Vstupy/výstupy zadního panelu:
*1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode)
*2 x USB 10Gbps ports (2 x USB Type-A)
*3 x USB 5Gbps ports (3 x Type-A)
*2 x USB 2.0 ports (2 x Type-A)
*1 x DisplayPort
*1 x HDMI™ port
*1 x Wi-Fi module
*1 x Realtek 2.5Gb Ethernet port
*5 x Audio jacks
*1 x Optical S/PDIF out port
*1 x BIOS FlashBack™ button

Interní vstupy/výstupy:
Ventilátory a chlazení:
*1 x 4-pin CPU Fan header
*1 x 4-pin CPU OPT Fan header
*1 x 4-pin AIO Pump header
*4 x 4-pin Chassis Fan headers
Napájení:
*1 x 24-pin Main Power connector
*2 x 8-pin +12V CPU Power connectors
Úložiště:
*3 x M.2 slots (Key M)
*4 x SATA 6Gb/s ports
USB:
*1 x USB 10Gbps connector (supports USB Type-C® )
*1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
*1 x USB 2.0 header supports 2 additional USB 2.0 ports
Různé:
*3 x Addressable Gen 2 headers
*1 x Clear CMOS header
*1 x Chassis Intrusion header
*1 x COM Port header
*1 x Front Panel Audio header (F_AUDIO)
*1 x 10-1 pin Front System Panel header
*1 x Thunderbolt™ (USB4®) header

Příslušenství:
Kabely:
*2 x SATA 6Gb/s cables
Různé:
*1 x ASUS WiFi Q-Antenna
*2 x M.2 rubber packages
*1 x Screw package for M.2 SSD
*1 x TUF GAMING sticker
Dokumenty:
*1 x Quick start guide

---

---

---

---

---

---

---
