Marketing Name

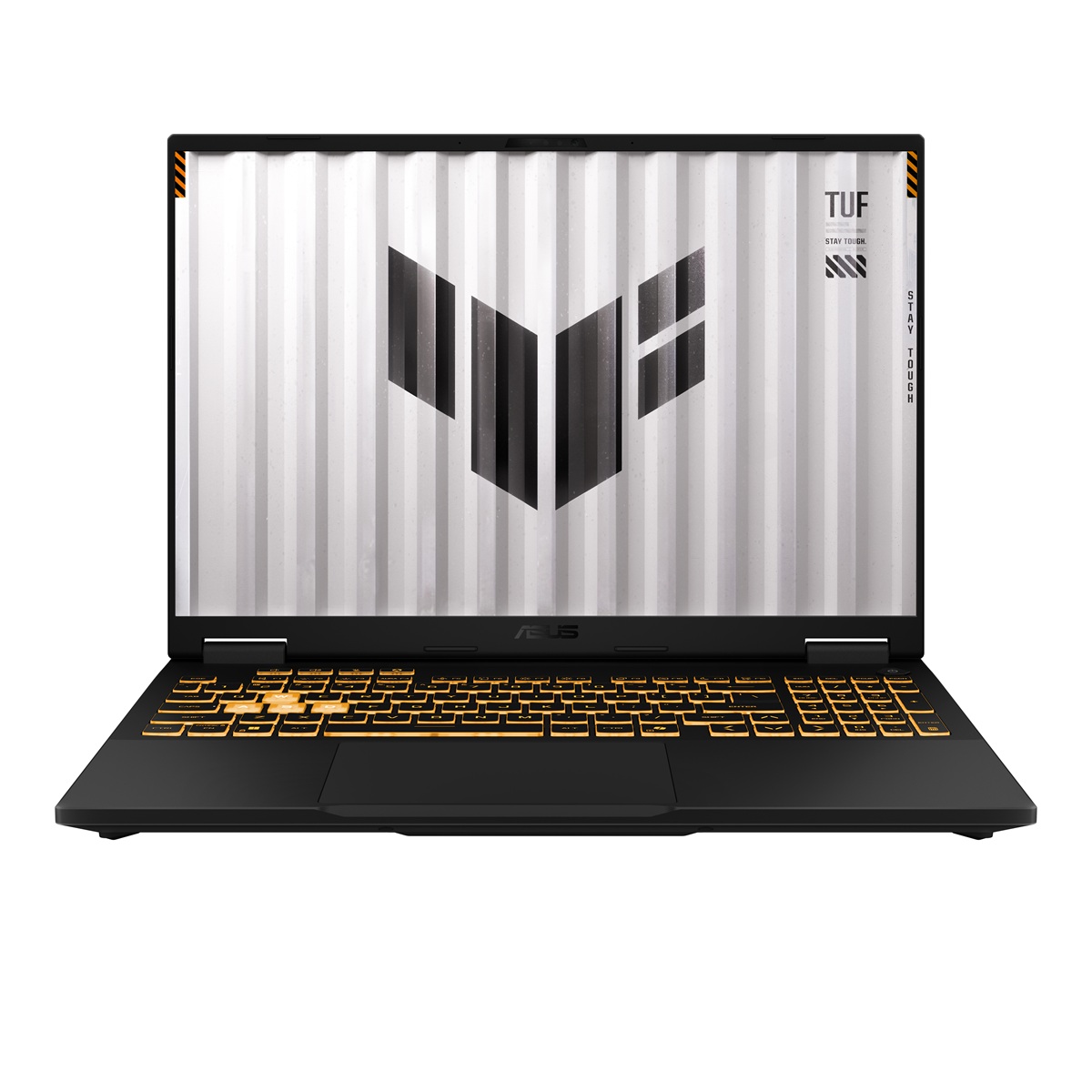

ASUS TUF Gaming F16

Operating System
Windows 11 Home

Office
1-month trial for new Microsoft 365 customers. Credit card required.

Color
Jaeger Gray

Dimension (W x D x H)
35.4 x 26.9 x 1.79 ~ 2.73 cm (13.94" x 10.59" x 0.70" ~ 1.07")

Weight
2.20 Kg (4.85 lbs)

Processor
13th Gen Intel® Core™ i5-13450HX Processor 2.4 GHz (20M Cache, up to 4.6 GHz, 10 cores: 6 P-cores and 4 E-cores)

Chipset
Mobile Intel® HM770 Express Chipsets

Intergrated GPU
Intel® UHD Graphics

Discrete/Optimus
MUX Switch + NVIDIA® Advanced Optimus

Graphic
NVIDIA® GeForce RTX™ 5060 Laptop GPU

Graphic Wattage
115W (100W+15W)

Graphic Memory
8GB GDDR7

Panel Size
16-inch

Resolution
FHD+ 16:10 (1920 x 1200, WUXGA)

Refresh Rate
165Hz

Viewing Angle
85/85/85/85

Panel Tech
IPS-level

Brightness
300

Contrast Ratio
1000:1

NTSC %
72.00%

SRGB %
100.00%

Adobe %
75.35%

Glare
Anti-glare display

Adaptive-Sync technology
G-Sync

Pantone
N/A

Support Dolby Vision HDR
N/A

On board memory
N/A

DIMM Memory
16GB DDR5-5600 SO-DIMM, the memory speed of the systems vary by CPU SPEC

Total System Memory
DDR5 16GB

Memory Slot
2x SO-DIMM slots

Memory Max.
64GB

Multi-channel memory technology
Support dual channel memory technology

Storage
512GB PCIe® 4.0 NVMe™ M.2 SSD

M.2 slots support either SATA or NVMe
2

M.2 SSD Support List
M.2 512GB PCIe SSD
M.2 1TB PCIe SSD
M.2 2TB PCIe SSD

Expansion Slot (includes used)
2x DDR5 SO-DIMM slots
2x M.2 PCIe

LAN
10/100/1000 Mbps

Wireless
Wi-Fi 6E(802.11ax) (Triple band) 2*2 + Bluetooth® 5.3 Wireless Card (*Bluetooth® version may change with OS version different.)

I/O Ports
1x RJ45 LAN port
1x Thunderbolt™ 4 with support for DisplayPort™ / G-SYNC (data speed up to 40Gbps)
1x USB 3.2 Gen 2 Type-C with support for DisplayPort™ / power delivery (data speed up to 10Gbps)
3x USB 3.2 Gen 2 Type-A (data speed up to 10Gbps)

Display output
1x HDMI 2.1 FRL

Camera
1080P FHD IR Camera for Windows Hello

Mic
Built-in array microphone

Keyboard Type
Backlit Chiclet Keyboard 1-Zone RGB
With Copilot key
*Copilot in Windows (in preview) is rolling out gradually within the latest update to Windows 11 in select global markets. Timing of availability varies by device and market. Learn more: https://www.microsoft.com/en-us/windows/copilot-ai-features?r=1#faq"

Aura Sync
Yes

Touchpad
Touchpad
N/A

Speakers
2-speaker system

Audio
1x 3.5mm Combo Audio Jack
Built-in array microphone

Audio Tech
AI noise-canceling technology
Dolby Atmos
Hi-Res certification (for headphone)
Support Microsoft Cortana near field/far field (Microsoft service suspended in spring of 2023.)"

Security
BIOS Administrator Password and User Password Protection
Trusted Platform Module (Firmware TPM)

Antivirus
McAfee® 30 days free trial

Battery
90WHrs, 4S1P, 4-cell Li-ion

Power
Rectangle Conn, 280W AC Adapter, Output: 20V DC, 14A, 280W, Input: 100-240V AC, 50/60Hz universal

Required charging power
Min: 45W
Max: 100W
*The indicated wattage is for demonstrating the system’s support capability as required by EU regulations. For optimal system performance, please use the standard-wattage adapter or higher."

Xbox Game Pass
Xbox Game Pass for PC_3 months (*Terms and exclusions apply. Offer only available in eligible markets for Xbox Game Pass for PC. Eligible markets are determined at activation. Game catalog varies by region, device, and time.)

Ecolabels & Compliances
N/A
