Display
Projection Systém DLP Single 0.65" WXGA
Native Resolution 1280 x 800 pixels
Brightness 4000 ANSI Lumens
Contrast Ratio* 20,000:1
Aspect Ratio Native 16:10 (5 aspect ratio selectable)
Light Source Lamp
Picture mode Presentation / Inforgraphic /Spreadsheet
Light Source life* Normal mode: Typical 6,000 hours Eco mode: Typical 10,000 h


Dimension (mm)
Throw Ratio 1.55-1.7
Zoom Ratio 1.1x
Lens shift NA
Keystone Adjustment 1D, +/- 30 degrees (V only)
Projection Offset 110% (Mode B)± 2.5%
Projection Size 60" ~ 150"
Built-in Speaker 10W

Security Bar,Kensington lock

Compatibility
Resolution Support VGA(640 x 480) to WUXGA (1920x1200)
Horizontal Frequency 15K~102KHz
Vertical Scan Rate 23~120Hz
HDTV Compatibility 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Video Compatibility NA
Typical Power Consumption (100V) 270W
Standby Power Comsumption Normal < 0.5Watts.
Power Supply AC 100 to 240 V, 50/60 Hz
Product Dimensions (WxHxD) 296 (W) x 221 (D)x 129 (H) mm
Product Weight 2.3 kg

Operation Condition
Noise Level(Normal/Eco) 34/29dBA
Operating Temperature 0 ~ 40oC

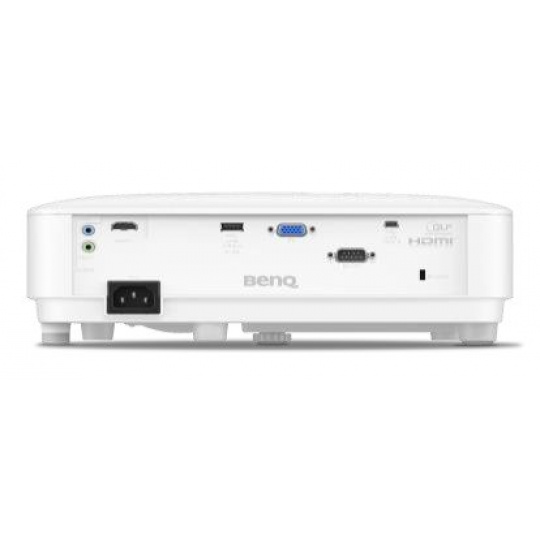

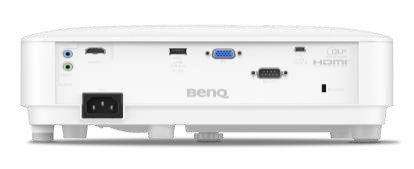

Connectivity
HDMI 1.4
WXGA Lamp light source
RS232 In (D-sub 9pin, male)
BenQ SmartEco Energy Conservation
USB (Type A)
20,000:1 High contrast
Audio in/out
USB (Mini B)
Speaker (10W)
VGA in
IR Receiver (Front )
