Host (Receiver)
(x1)
Button (Transmitter)
(x2)
Cradle
(x1)
Antenna
(x4), 5dbi, MIMO
Safety Statement
(x1) 16L

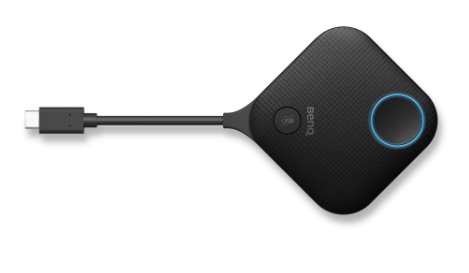

InstaShow Button
Button Connector Type
(x1) USB Type C
Button Function Key
Split Screen Key

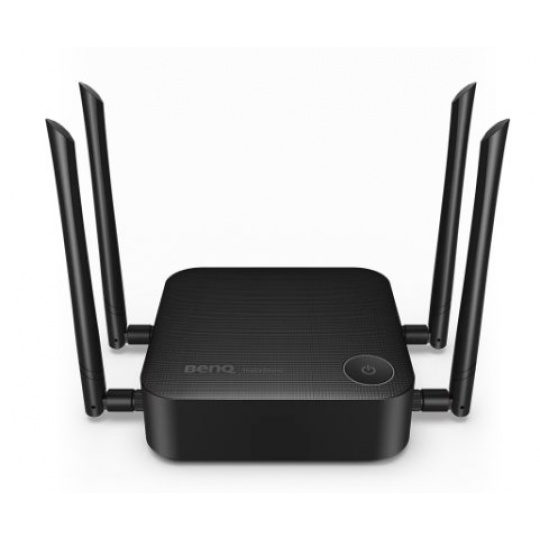

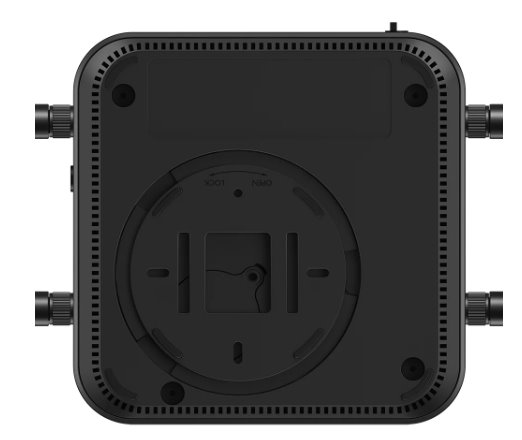

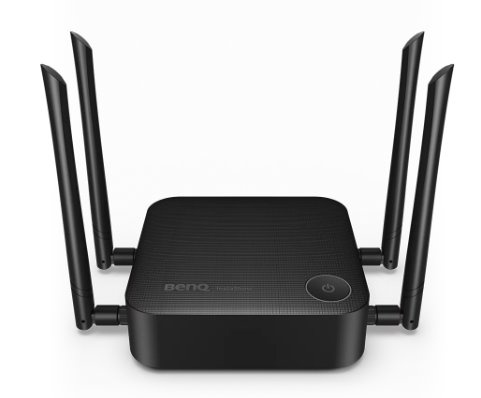

InstaShow Host
Host Power Supply
DC 12V±10%, 3A
Host Normal Power Consumption
11W

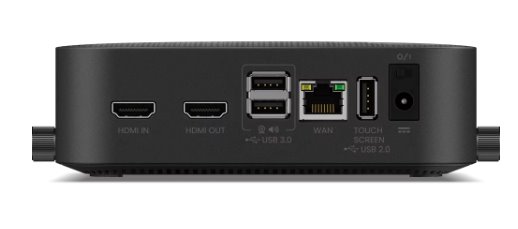

HDMI out
(x1)
Host Dimensions without antenna
145x145x46 mm
Host Weight
332 g

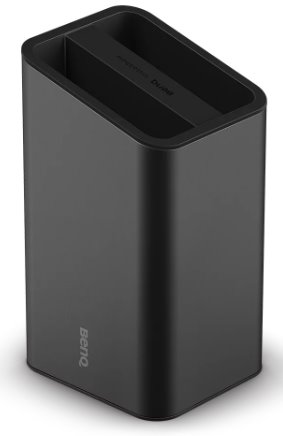

InstaShow Cradle
Cradle Dimensions
85x97.5x170.4 mm mm
Cradle Weight
630 g
InstaShow Features
Video Outputs
HDMI 2.0 (with HDCP)
Maximum Output Resolution (Receiver)
Up to 4K 60Hz
WiFi Standard
5
Wireless Frequency
2.4G + 5G
Wireless Data Rate (Maximum)
AC1200 (2.4G 300 Mbps + 5G 867 Mbps)
Split Screens (Maximum)
4
Simultaneous connections
32
WiFi Protected Access
WPA2
Advanced Encryption Standard
AES128
