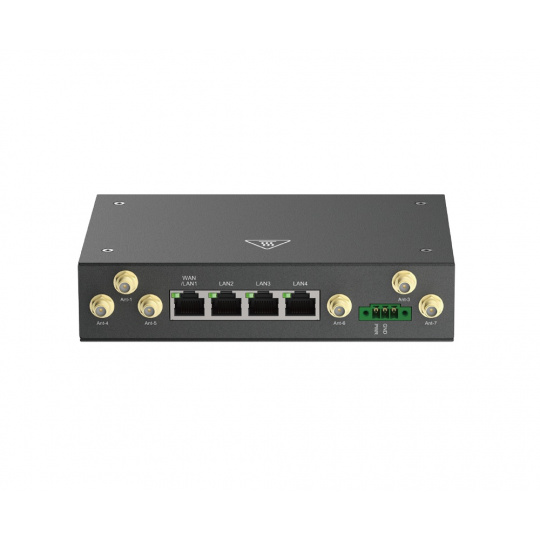

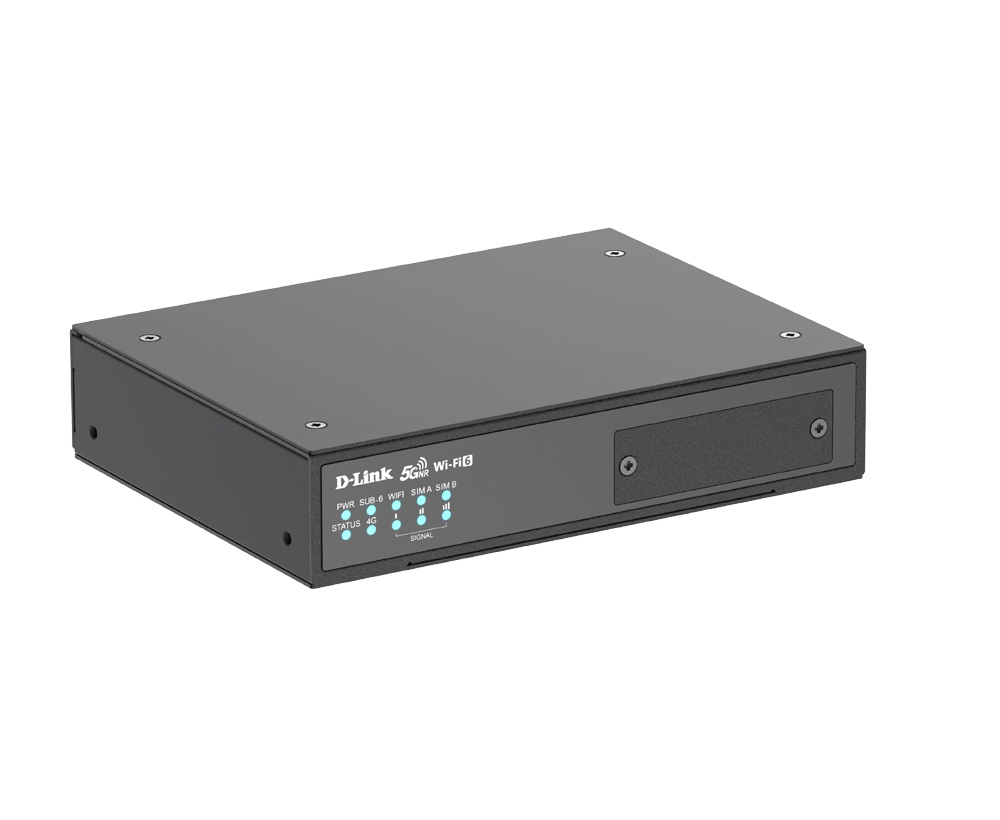

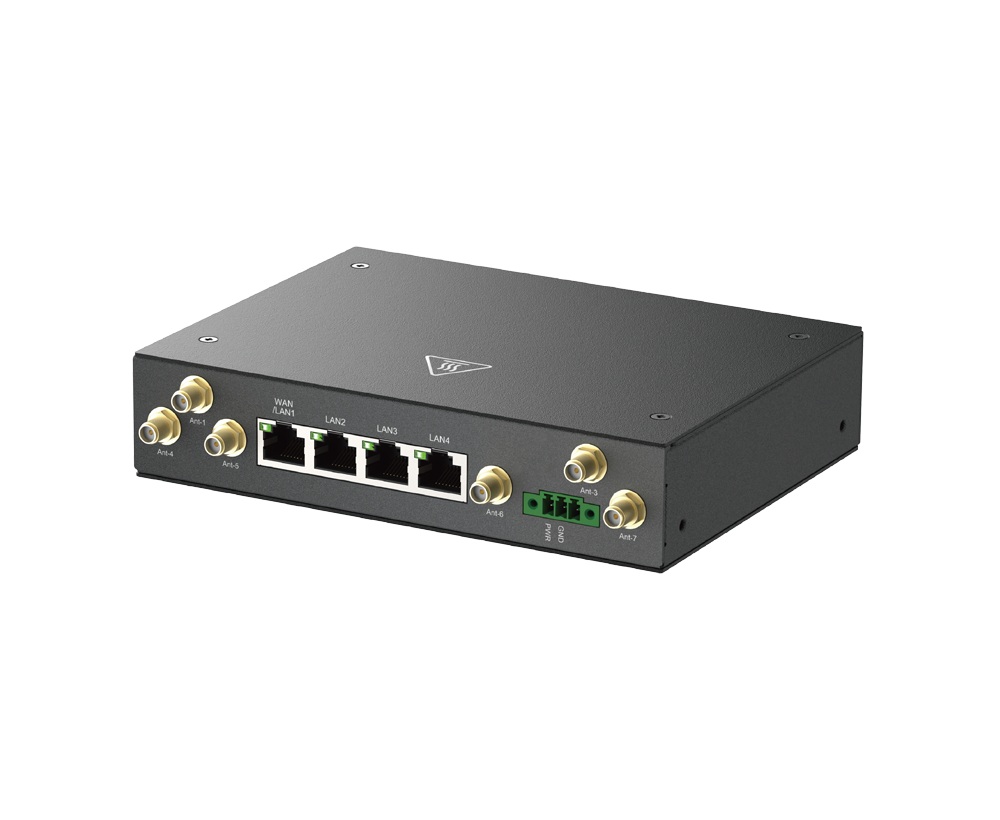

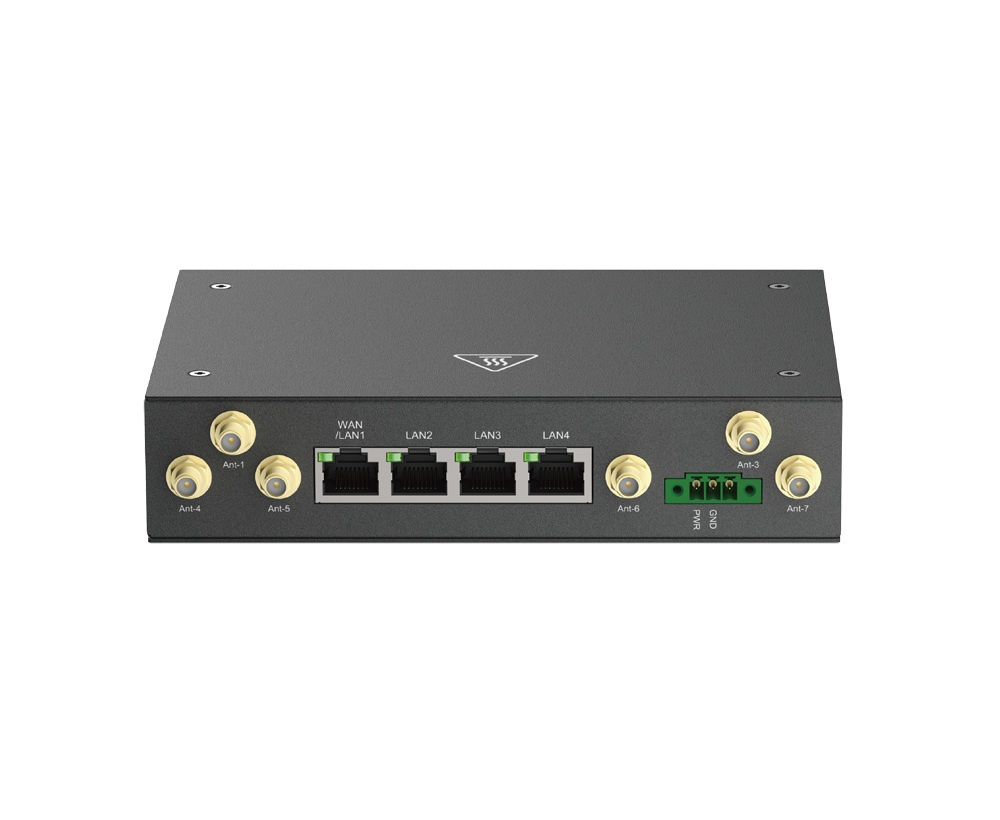

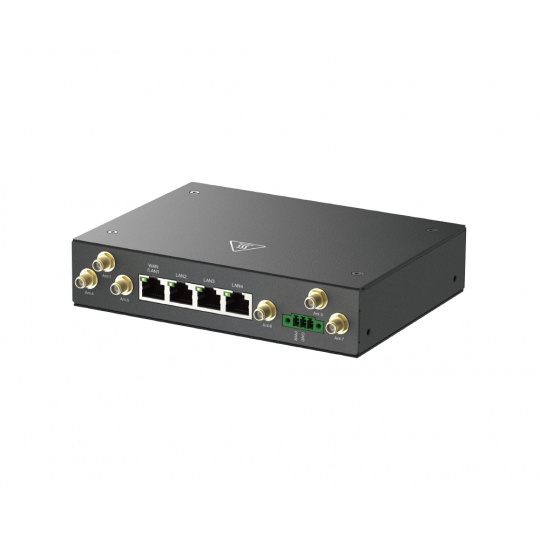

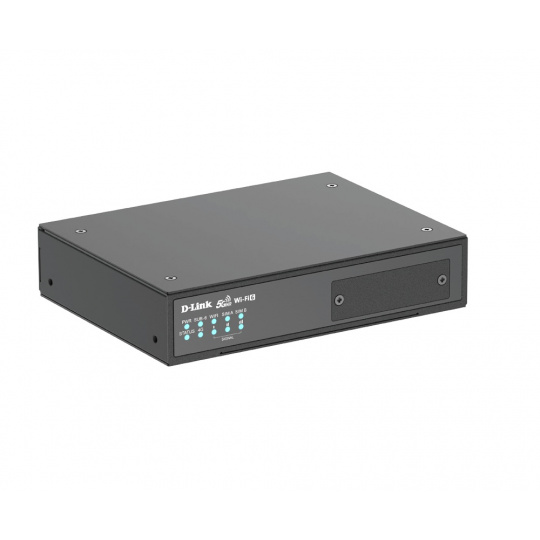

D-Link DWM-550-G

Mobilní sítě: 5G/4G 3GPP

Podporovaná pásma (5G):
EU SKU (HW A1): n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n71/n75/n76/n77/n78
Global/US SKU (HW A2): n1/n2/n3/n5/n7/n8/n12/n13/n14/n18/n20/n25/n26/n28/n29/
n30/n38/n40/n41/n48/n66/n70/n71/n75/n76/n77/n78/n79

Podporovaná pásma (4G LTE):
EU SKU (HW: A1): FDD: B1/B3/B5/B7/B8/B20/B28/B32/B71, TDD: B38/B40/B41/B42/B43
US SKU (HW: A2): FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71,
TDD: B34/B38/B39/B40/B41/B42/B43/B46(LAA)/B48

Slot pro SIM: 2x Nano SIM

Rozhraní:
* Cellular Module: 5G/4G 3GPP Rel. 16
* Cellular Standards: 5G NR(Sub-6GHz), 4G LTE(DL Cat.19/UL Cat.18)
* SIM Slot
* Ethernet: 1*WAN/LAN GE, 3*LAN GE
* WiFi: Wi-Fi6 AX1800(2.4G/5GHz)
* Power Input: DC 12-36V (TB)
* Antenna Conector: 4*SMA(F)-Cellular, 2*SMA(RP-F)-WiFi

Přenosové rychlosti:
* 5G NSA : 3.4 Gbps (DL) / 550 Mbps (UL)
* 5G SA: 2.4 Gbps (DL) / 900 Mbps (UL)
* LTE: 1.6 Gbps (DL) / 200 Mbps (UL)

VPN funkce: OpenVPN, IPSec, PPTP,L2TP,GRE, WireGuard
Administrace: WebUI, CLI, Command Script, D-Link D-ECS, Diagnostic Tools, Ethernet Port Setup
Režimy WAN: NAT, Ether-WAN, Failover, Bridge, ICMP Check/DNS Query

Další síťové funkce:
* LAN & VLAN: DHCP Server/Relay, Port/Tag based VLAN
* Port Forward: : NAT Loopback, Special AP&ALG, DMZ, Virtual Server & Computer, VPN Pass-through
* Routing: Static, Dynamic RIPv1/v2, OSPF, BGP
* DDNS: DynDNS, No-IP, Dynamic DO
* QoS: Rule for Service (DSCP, TOS, Well-known Service)
* IGMP, IPv4/v6

Rozměry: 160 x 125 x 35mm

Záruka: 3 roky

Odkaz na stránky výrobce: https://www.dlink.com/uk/en/products/dwm-550-g-5g-m2m-router
