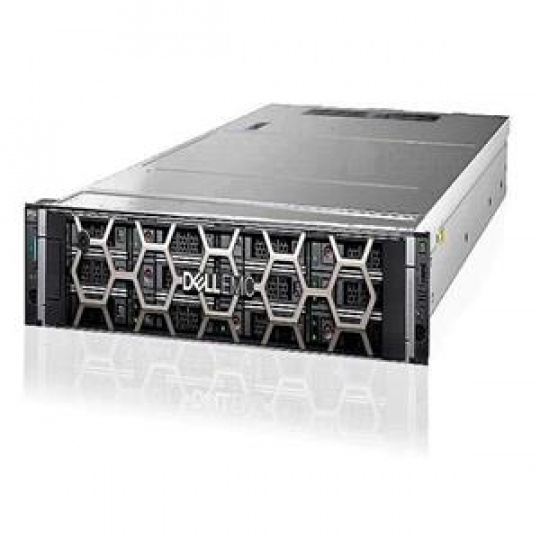

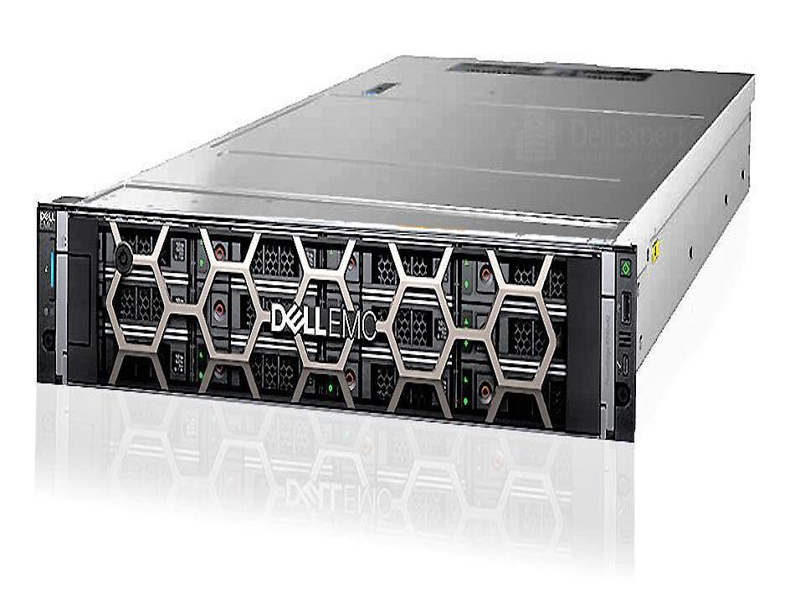

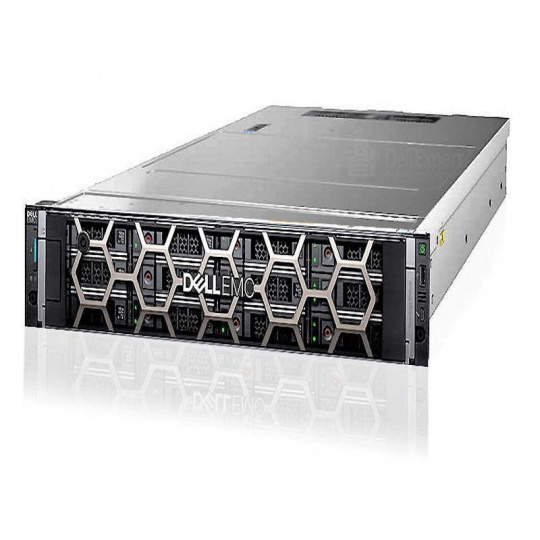

PowerEdge R570 Unprecedented Single-Socket Server with Optimized Power and Balanced Performance

CPU: Intel® Xeon® 6 Performance 6507P 3.5G, 8C/16T, 24GT/s, 48M Cache, Turbo, (150W) DDR5-6400
RAM: 1x 32GB RDIMM, 6400MT/s, Dual Rank (max 16x RAM per CPU)
HDD: 1x 960GB SSD SATA Read Intensive 6Gbps 512e 2.5in Hot-plug AG Drive, 1 DWPD
2.5" Chassis with up to 16 SAS4/SATA Drives, Smart Flow, PERC 12 (H965i)
Řadič RAID: PERC H965i Controller, Front, DC-MHS, raid 0, 1, 5, 6, cache 8GB
Optická mechanika : Ne
Šasi : Rack 2U
Správa : iDRAC10, Enterprise 17G
Napájení: Dual, Fully Redundant (1+1), Hot-Plug MHS Power Supply, 1100W MM (100-240Vac) Titanium
2U Combo Drop-In/Stab-In Rails
Riser Config 5, Rear Full Height 2x16 FH (Gen5), 1x16 FLOP OCP, 1x16 Onboard OCP
PowerEdge 2U Standard Bezel
Záruka: 3y Prosupport NBD onsite

1 CPU, 1x16 LP+ 1x8(x4 link) LP

Front Ports • 1 x USB 2.0 Type-C (HOST/BMC Direct) • 1 x USB 2.0 Type-A (optional LCP - Secondary KVM) • 1 x Mini DisplayPort (optional LCP - Secondary KVM) • 1 x DB9 Serial (with front I/O configuration) • 1 x Dedicated BMC Ethernet port (with front I/O configuration)
Internal Port • 1 x USB 3.1 Type-A
Rear Ports • 1 x Dedicated BMC Ethernet port • 2 x USB 3.1 Type-A • 1 x VGA

• Height – 86.8 mm (3.42 inches) • Width – 482.0 mm (18.98 inches) • Depth – 802.38 mm (31.59 inches) with bezel • Depth – 801.49 mm (31.55 inches) without bezel Rear bays: • Up to 4 x EDSFF E3.S Gen5 NVMe max 245.76 TB • Depth (Cold aisle/Front I/O Configuration) – 814.5 mm (32.06 inches) without bezel Note: Front I/O configuration will not have a bezel.
