ERGOTRON TM Tilting Wall Mount, XLLarge Display or TV Mount pro 42"-120" obrazovky

The TM is the perfect accessory for large displays or TVs weighing up to 175 lbs (79 kg). Attaching your valuable flat panel investment to a wall can be nerve-racking. So we took our engineering know-how and created an extremely stable TV wall mount solution that’s easy to install. With its integrated CF™ motion technology, anyone can effortlessly tilt the screen to the perfect angle.

Part Number: 61-142-003
Product Weight: 5.5 kg
Shipping Weight: 6.8 kg
Shipping Dimensions: 39.5"W x 12.9"H x 4.3"D (100 x 33 x 11 cm)

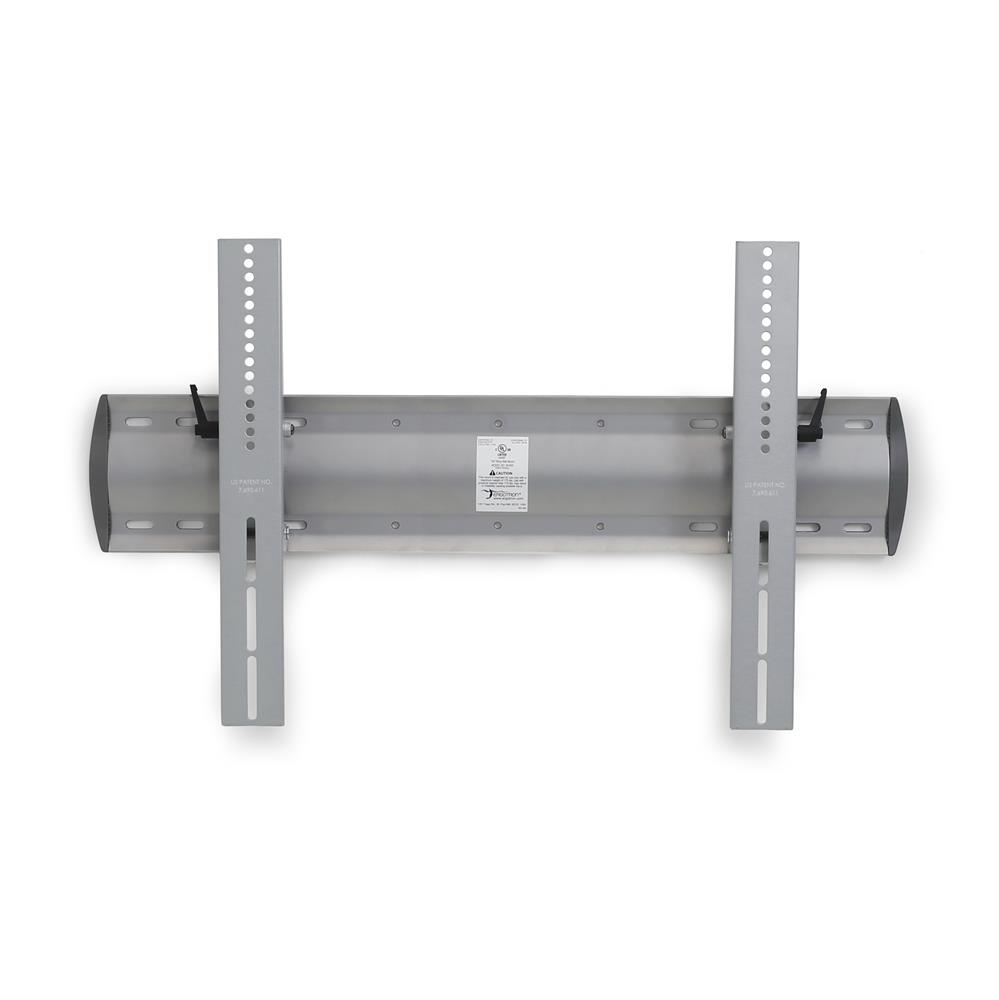

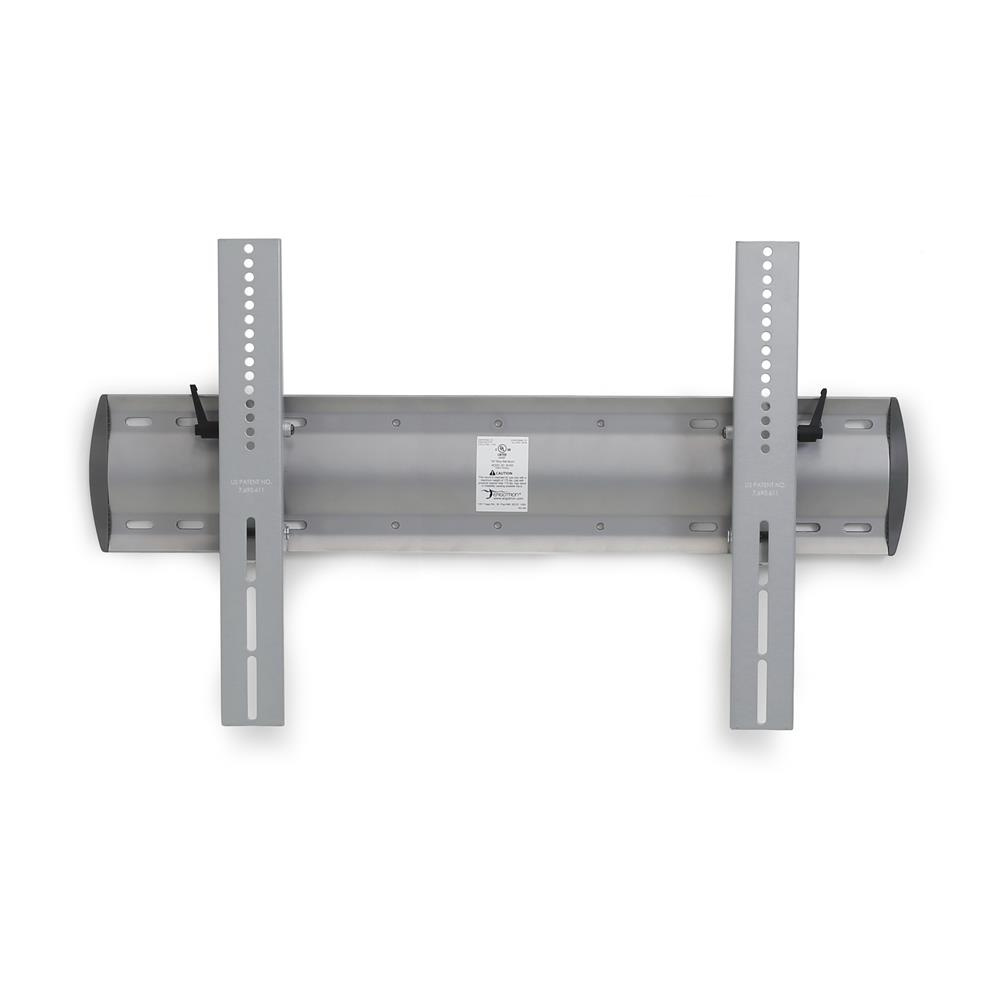

Description: TM Tilting Wall Mount, XL (silver)
Includes wall plate, two display brackets with tilt-lock levers, hardware fastener kit
Installation Options: Wall plate attaches to vertical surfaces. Includes hardware for mounting to wood studs (16" or 24" centered studs) or concrete walls
* Mounting holes must fit within spacing range: horizontal = 100 mm (min.) to 800 mm (max.); vertical = 100 mm (min.) to 450 mm (max.)
† Fits most screens = 42". If used with screens < 42", wall plate may be visible
Premium Construction: Composed of extruded aluminum and steel
Display Tilt: Smooth continuous display tilt range from 15° forward to 5° back
Profile off the wall = 3.5" (89 mm)
UL certified and listed to UL Standard 2442. This product has been tested to hold four times its maximum load capacity per UL standard (do NOT exceed listed weight capacity in actual use)
