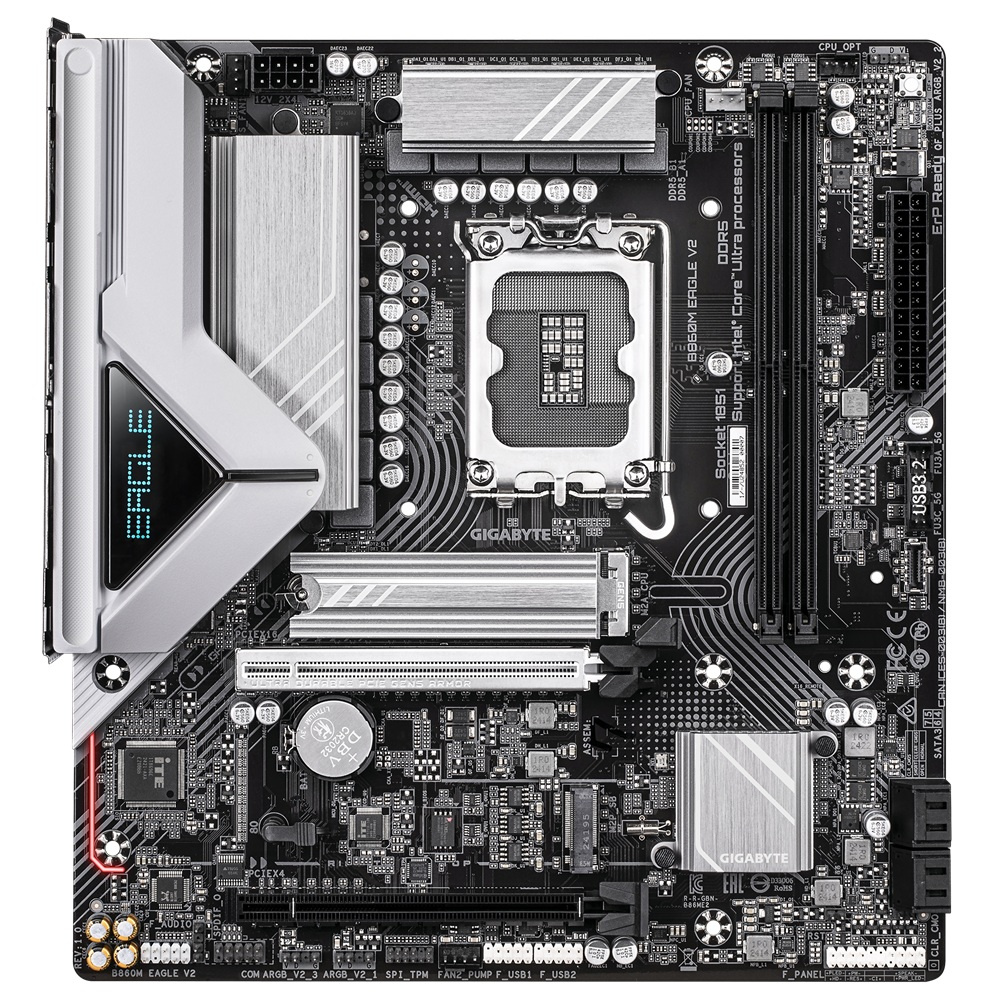

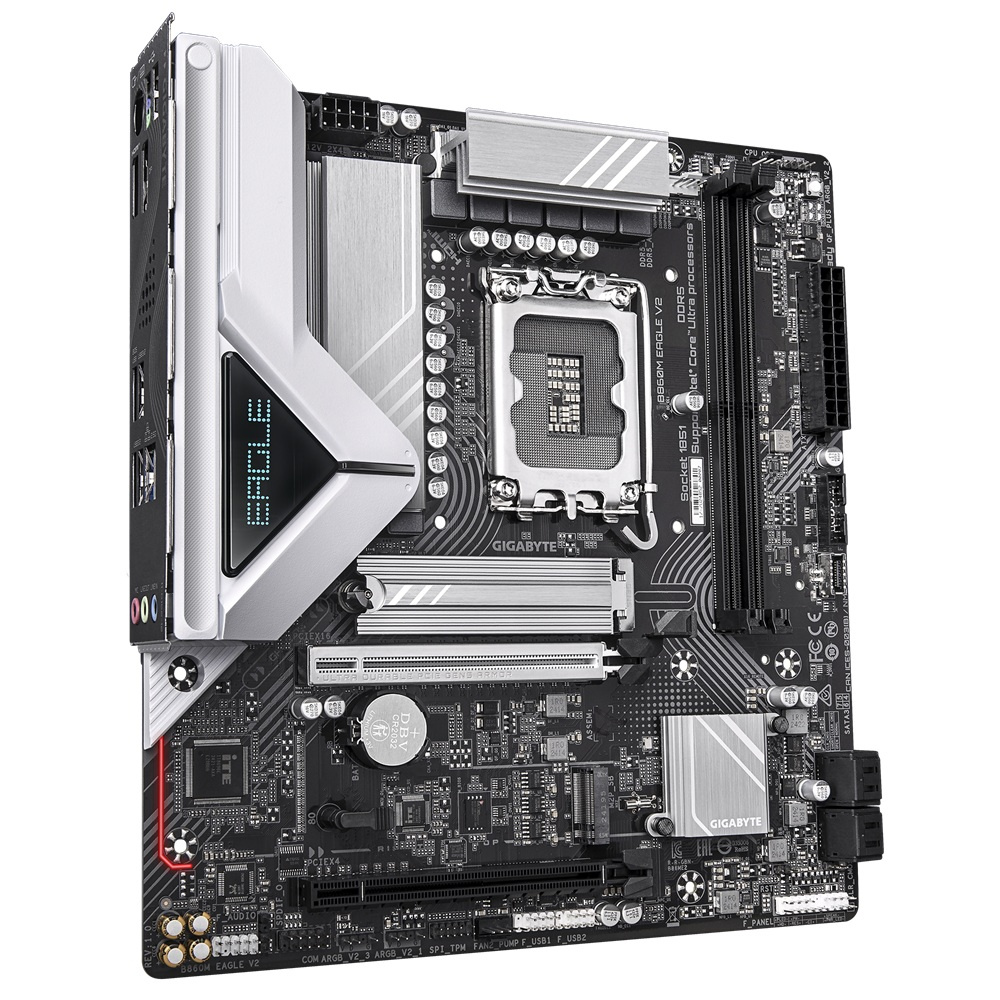

GIGABYTE B860M EAGLE V2

Chipset: Intel B860 Express Chipset
Rozměrový formát: Micro ATX Form Factor; 24.4cm x 22.5cm
Podpora pro procesory: Intel ® Core™ Ultra
Patice procesoru: LGA1851

Paměť:
* 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory
*Dual channel memory architecture
*Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
*Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
*Support for Extreme Memory Profile (XMP) memory modules
Grafické výstupy:
* 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz - Support for HDMI 2.1 version and HDCP 2.3
* 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz - Support for DisplayPort 2.1 version
Zvuková karta:
*Realtek® Audio CODEC
*High Definition Audio
*2/4/5.1/7.1-channel
*Support for S/PDIF Out
Ethernet: Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Rozšiřující sloty:
* 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) - The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot
* 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)

Úložný prostor:
* 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support)(M2A_CPU)
* 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2P_SB)
* 4 x SATA 6Gb/s connectors

RAID řadič: RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

USB:
* 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
* 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
* 3 x USB 2.0/1.1 ports on the back panel
Chipset+USB 2.0 Hub:
* 4 x USB 2.0/1.1 ports available through the internal USB headers

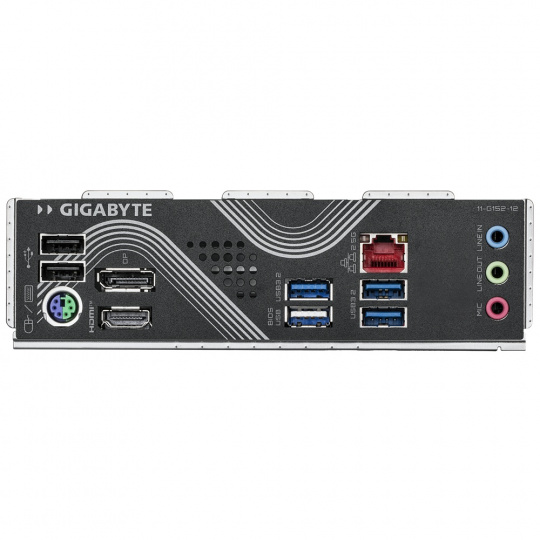

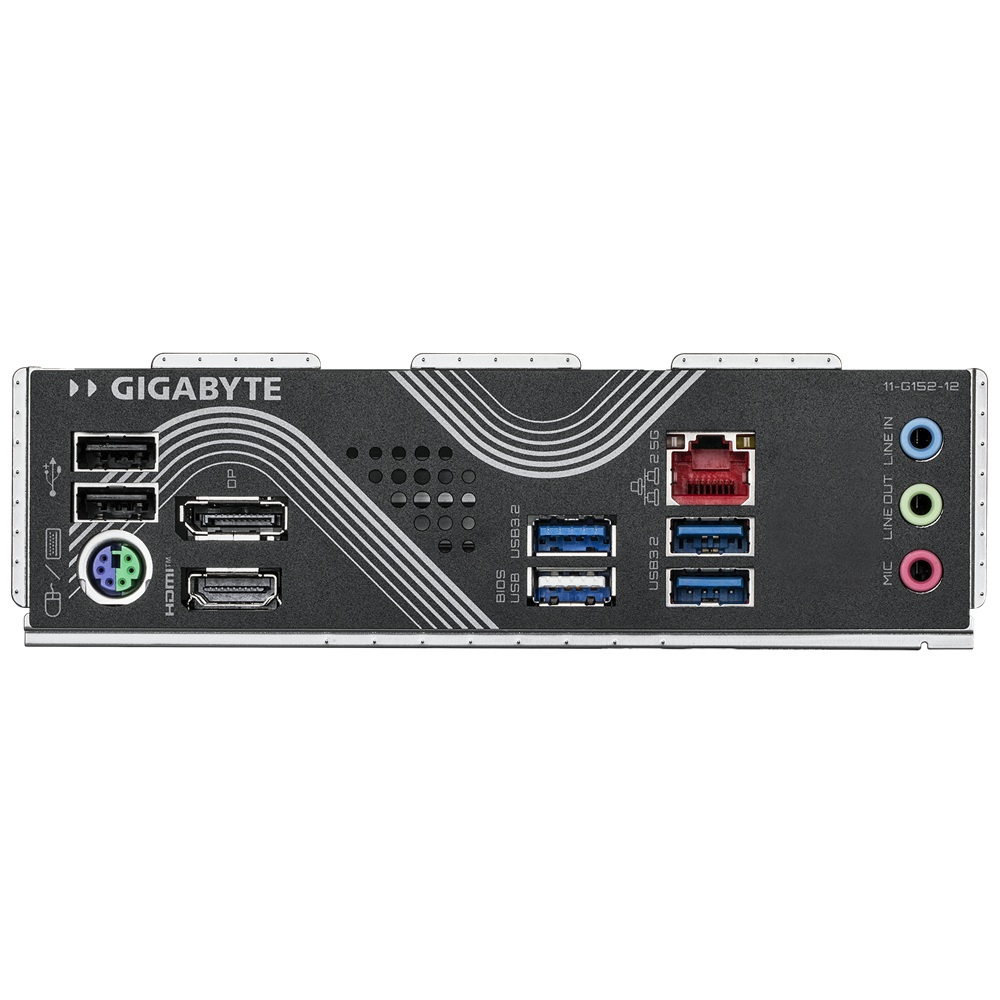

Porty na zadním panelu:
* 1 x PS/2 keyboard/mouse port
*1 x HDMI por*
*1 x DisplayPort*
*3 x USB 3.2 Gen 1 ports
*3 x USB 2.0/1.1 ports
*1 x RJ-45 port
*3 x audio jacks

Interní porty:
Napájení
* 1 x 24-pin ATX main power connector
*1 x 8-pin ATX 12V power connector
Související s ventilátorem a chlazením
* 1 x CPU fan header
*1 x CPU fan/water cooling pump header
*1 x system fan header
*1 x system fan/water cooling pump header
Související s úložištěm
* 2 x M.2 Socket 3 connectors
*4 x SATA 6Gb/s connectors
USB
* 1 x USB Type-C® header, with USB 3.2 Gen 1 support
*1 x USB 3.2 Gen 1 header
*2 x USB 2.0/1.1 headers
Ostatní
* 3 x addressable RGB Gen2 LED strip headers
*1 x front panel header
*1 x front panel audio header
*1 x S/PDIF Out header
*1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
*1 x serial port header
*1 x Q-Flash Plus button
*1 x reset jumper
*1 x Clear CMOS jumper

BIOS:
*1 x 256 Mbit flash
*Use of licensed AMI UEFI BIOS
*PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Odkaz na stránku výrobce: https://www.gigabyte.com/Motherboard/B860M-EAGLE-V2/sp#sp
