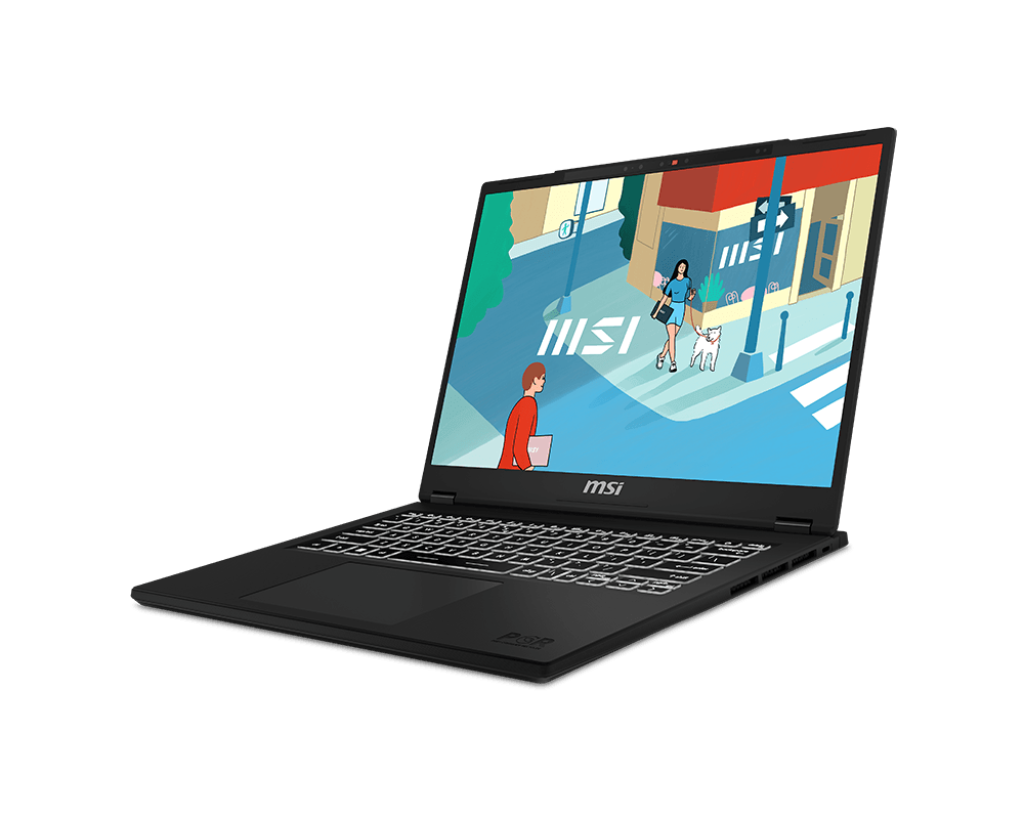

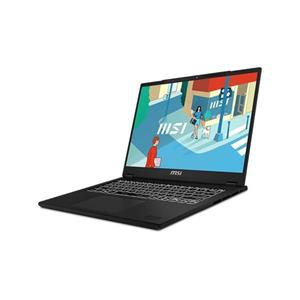

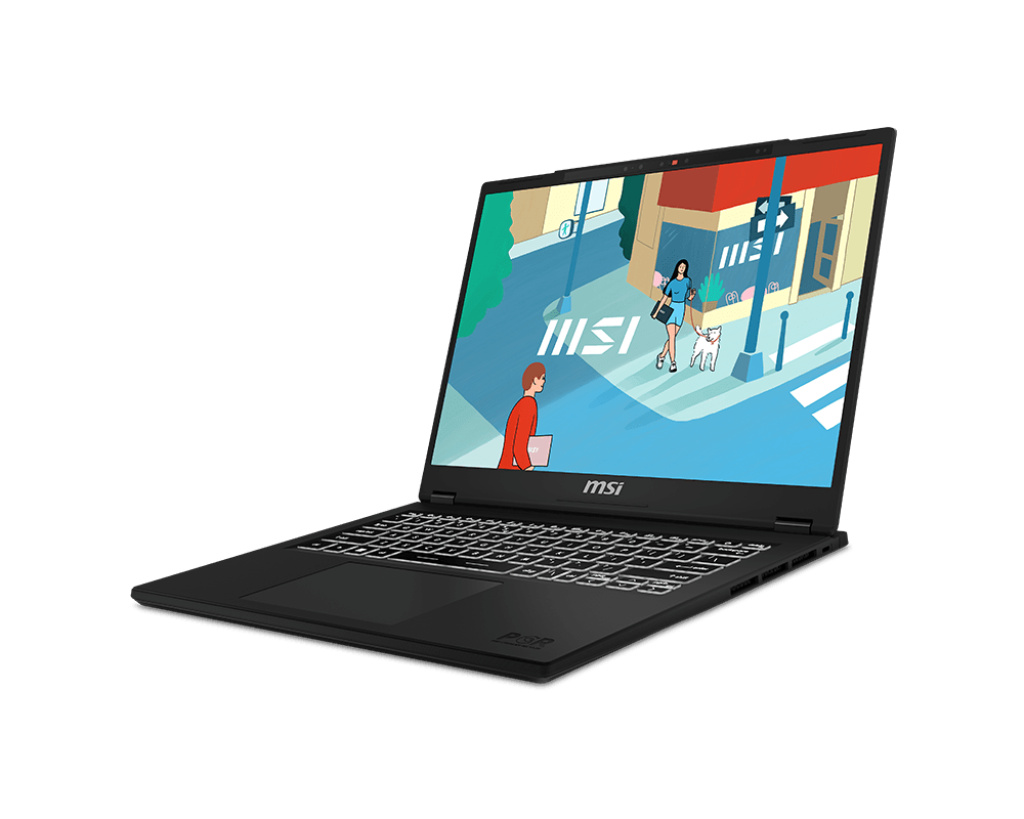

MSI Modern 14 H D13MG-068CZ/i7-13620H/16GB/1TB SSD/Intel UHD Gr./14" FHD+ IPS/Win 11 Home/ černá

MKT Spec Modern 14 H D13MG-068CZ
System/Barebone System
Chassis Color
Color ID1(BB)/Black-Black-Black-Black
Color_Website Black
Chassis Material
A Side Metal
B Side Plastic
C Side Plastic (PCR)
D Side Metal
Display
Screen Size 14.0
Resolution IPS-Level FHD+
Pixel 1920x1200
LCD Features ANTI-GLARE
Screen Touch Non-touch
Frame Rate 60Hz
Response Time Tr+Tf 20ms
Color Range 45%
Screen Size_Website 14"
Pixel_Website FHD+(1920x1200)
Frame Rate_Website N/A
Color Range_Website N/A
Display Type_Website IPS-Level
HDR Value N/A
Touch Feature_Website NA
CPU
CPU Type 10 CORE
CPU Core Name RAPTOR LAKE
CPU Socket FCBGA-1744pin
CPU Number i7-13620H
CPU Clock 2.4GHz
CPU Cores 10
CPU Core Name_Website 13th Gen Intel® Core™
CPU Number_Website i7-13620H processor
CPU Specification_Website 10 cores (6 P-cores + 4 E-cores), Max Turbo Frequency 4.9 GHz
Chipset
Chipsets N/A
Chipset SoC_Website Integrated SoC
Discrete Graphics
GPU1 Vendor N/A
GPU1 MKT Name N/A
GPU1 Number UMA
GPU1 MKT Name_Website N/A
GPU1 Boost Clock_Website N/A
GPU1 Remark_Website N/A
CPU and GPU Combined Power
Combined Power_Website N/A
OverBoost Ultra Remark_Website N/A
Scenario Remark_Website N/A
Cooling
Thermal Cooler Boost
Fan 1
Pipe 2
Vapor Chamber N/A
Video Memory
GPU1 VRAM Size N/A
GPU1 VRAM Type N/A
Integrated Graphics
GPU1 Graphics_Website Intel® UHD Graphics
Memory
Memory Size 8GB*2
Memory Type DDR4-3200
Memory Speed 1600(3200)MHz
Memory Remark_Website N/A
Memory Slot and Max Capacity
Memory Slot 2 Slots
Memory Max Capacity_Website Max 64GB
Storage
SSD Interface PCIe GEN4x4 w/o DRAM NVMe
SSD Form Factor M.2-2280 M-Key
SSD Size 1TB*1
HDD1 Interface N/A
HDD1 Form Factor N/A
HDD size N/A
HDD1 RPM N/A
ODD Type N/A
Multi Bay N/A
SSD Gen_Website NVMe SSD PCIe Gen4
2.5" HDD_Website N/A
SSD Remark N/A
Storage Slot
SSD (NVMe PCIe Gen)_Website 1x M.2 SSD slot (NVMe PCIe Gen4)
HDD_Website NA
Communications
Accessory Lan_Website Gb LAN
LAN
LAN_Website Gigabit Ethernet
LAN INTEL/WGI219V(SLKJ4/SKLJ5) MM#
Wi-Fi/ Bluetooth
WLAN/BT_Website Intel® Wi-Fi 6E AX211, Bluetooth v5.3
WLAN Version Wi-Fi 6E+BT
WLAN/BT INTEL/AX211.NGWG.NV
I/O Ports
Audio Line In N/A
Audio Line Out N/A
Digital out SPDIF N/A
RJ45 1x
USB Ports
Type-C (USB3.1 Gen2 / DP / Thunderbolt™3 optional) N/A
Type-C (USB3.2 Gen2 / DP / Thunderbolt™3) N/A
Type-C (USB3.2 Gen1 / DP / Thunderbolt™3) N/A
Type-C (USB3.2 Gen2 / DP / Thunderbolt™3) with PD charging N/A
Type-C (USB3.2 Gen2 / DP) N/A
Type-C (USB / DP / Thunderbolt™ 4) with PD charging 1x
Type-C (USB / DP / Thunderbolt™ 4) with PD3.1 charging N/A
Type-C (USB / DP / Thunderbolt™ 4) N/A
Type-C (USB / DP / Thunderbolt™) with PD charging N/A
Type-C (USB3.2 Gen2 / DP) with PD charging N/A
Type-C (USB3.2 Gen2 / DP) with PD3.1 charging N/A
Type-C (USB3.1 Gen1 / DP) N/A
Type-C (USB3.2 Gen1 / DP) N/A
Type-C USB3.1 Gen2 N/A
Type-C USB3.2 Gen2 N/A
Type-C USB3.2 Gen2 with PD charging N/A
Type-C USB3.1 Gen1 N/A
Type-C USB3.2 Gen1 N/A
Type-A USB3.1 Gen1 NA
Type-A USB3.2 Gen1 3x
Type-A USB3.1 Gen1/ QC3.0 N/A
Type-A USB3.2 Gen1/ QC3.0 N/A
Type-A USB3.1 Gen2 N/A
Type-A USB3.2 Gen2 N/A
Type-C USB3.2 Gen2x2 N/A
Type-A USB3.1 N/A
Type-C USB3.0 N/A
Type-A USB3.0 N/A
Type-A USB2.0 N/A
USB3.2 Gen 2 Type-C(connect to computer) N/A
Card Reader
CardReader N/A
Smart Card Reader N/A
Video Ports
VGA Out N/A
HDMI™ 1x HDMI™ 2.1 (4K @ 60Hz)
DisplayPort N/A
Mini Display Port N/A
Keyboard
Keyboard Types_Website Single Backlit Keyboard (White)
Keyboard Keys 83KEYS
Keyboard Backlit N/A
Keyboard Numeric No
Keyboard Color BLACK
Keyboard Language CS Nokr
Touchpad
Touchpad NA
WebCam
WebCam HD type (30fps@720p)
Webcam Feature 3D Noise Reduction (3DNR)
Audio Port
Audio Jack_Website 1x Mic-in/Headphone-out Combo Jack
Audio
Audio Speaker 2x 2W
Audio Woofer N/A
Audio Mic N/A
Audio Solution_Website Hi-Res Audio Ready
AC Adapter
Adaptor Output 90W adapter
Adaptor 90W
Adaptor Input 90-264Vin
Adaptor Unit Weight (g) 228
Power Cord Unit Weight (g) 98
Battery
Battery Type 3CELLS/3S1P
Battery Cell_Website 3-Cell
Whrs N/A
Battery Unit Weight (g) 175
Operating Systems
OS MULTI-LANGUAGE(WIN 11 HOME PLUS OLC OA3)
OS Type W11MH
OS_Website Windows 11 Home (MSI recommends Windows 11 Pro for business.)
Microsoft Office
OS-Office_Website N/A
Dimension (WXDXH)
Dimension 313.7 x 236 x 18.6 mm
Dimension(Inches)_Website 12.35" x 9.29" x 0.73"
Weight (W/ Battery)
Weight 1.6 kg
Weight(lbs)_Website 3.53 lbs
Weight (Docking) N/A
Weight (lbs Docking)_Website N/A
Security
Security Type_Website Firmware Trusted Platform Module(fTPM) 2.0, Webcam Shutter, Kensington Lock
Certification
Certification Type_Website MIL-STD-810H/G
Sustainability
EPEAT_Website
Sensor
Fingerprint_Website NA
Fingerprint (Optional) x1
Ambient Light Sensor_Website N/A
Gyroscope_Website N/A
Accelerometer_Website N/A
Magnetometer_Website N/A
Proximity Sensor N/A
NFC (Optional) 1x
Warranty
Warranty 24M
Warranty_Website 2 years limited warranty
Accessory
Accessory_Website
Extra Bag N/A
Extra Mouse N/A
Remark
I/O Ports Remark *Smart Card Reader is an optional feature, *SD Card Reader is an optional feature, *RJ45 is an optional feature
Remark 1_Website
Remark 2_Website
Remark 3_Website
Remark 4_Website
Remark 5_Website
Software
Software Noise Cancellation, Battery Master, MSI Center
Model Info
Series Name Business& Productivity
Segment Name Modern
Segment Name2 Modern14HD
Segment Name3 Modern14H D13MG
Barcode Info
EAN 4711377185462
