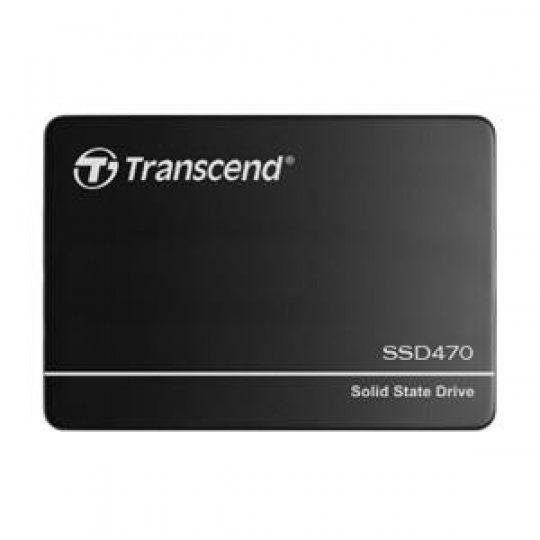

Transcend's SSD470N features a SATA III 6Gb/s interface and state-of-the-art 3D NAND technology, which allows
112 layers of 3D NAND flash chips to be vertically stacked. Compared to 3D NAND at 96 layers, this density
breakthrough greatly improves storage efficiency. Transcend's SSD470N comes with a powerful controller and a
DRAM cache, ensuring data can be written to the flash over extended periods without compromising performance.
The SSD470N is fully tested in-house to guarantee reliability in mission-critical applications, boasting an endurance
rating of 3K Program/Erase cycles and an extended operating temperature ranging from -20-75°C.


Specifications
Appearance
Dimensions 100 mm x 69.85 mm x 6.8 mm (3.94" x 2.75" x 0.27")
Weight 54 g (1.9 oz)
Form Factor 2.5"
Interface Bus Interface SATA III 6Gb/s
Storage
2 TB
Flash Type 112-layer 3D NAND flash
Operating
Environment
Operating Voltage 5V±5%
Operating Temperature
Extended Temp.
-20°C (-4°F) ~ 75°C (167°F)
Wide Temp.
-40°C (-40°F) ~ 85°C (185°F)
Storage Temperature -55°C (-67°F) ~ 85°C (185°F)
Humidity 5% ~ 95%
Shock 1500 G, 0.5 ms, 3 axis
Vibration (Operating) 20 G (peak-to-peak), 7 Hz ~ 2000 Hz (frequency)
Power
Power Consumption (Operation) 5.2 watt(s)
Power Consumption (IDLE) 0.6 watt(s)
Performance
Sequential Read/Write (CrystalDiskMark) Read: Up to 560 MB/s
Write: Up to 510 MB/s
4K Random Read/Write (IOmeter) Read: Up to 84,000 IOPS
Write: Up to 70,000 IOPS
Mean Time Between Failures (MTBF) 3,000,000 hour(s)
Terabytes Written (TBW) Up to 3800 TBW
Drive Writes Per Day (DWPD) 1.73 (3 yrs)
Warranty
Certificate CE / UKCA / FCC / BSMI
Warranty Three-year Limited Warranty
