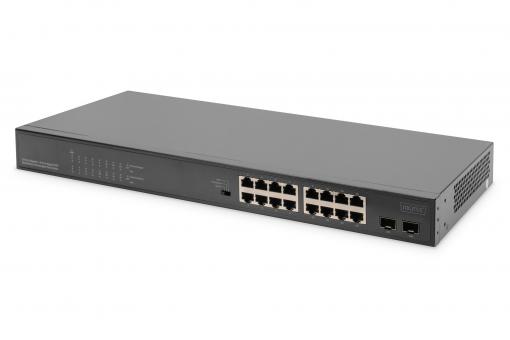

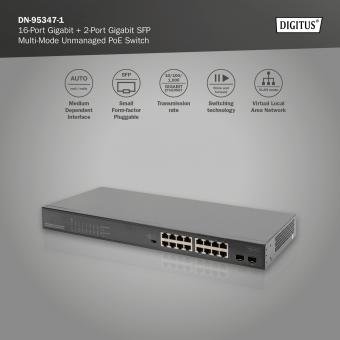

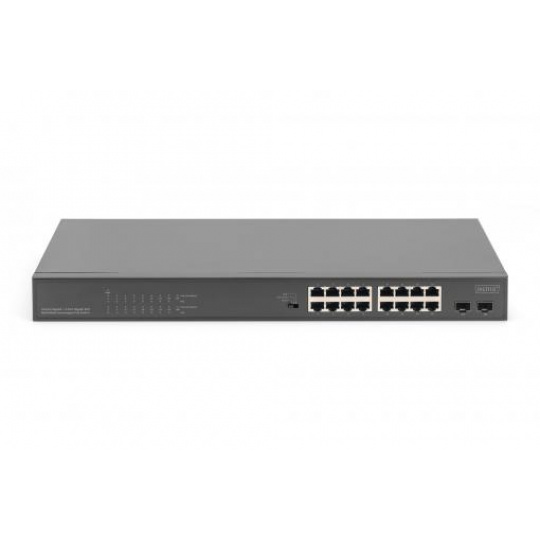

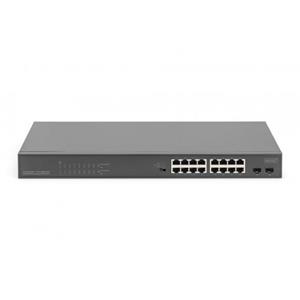

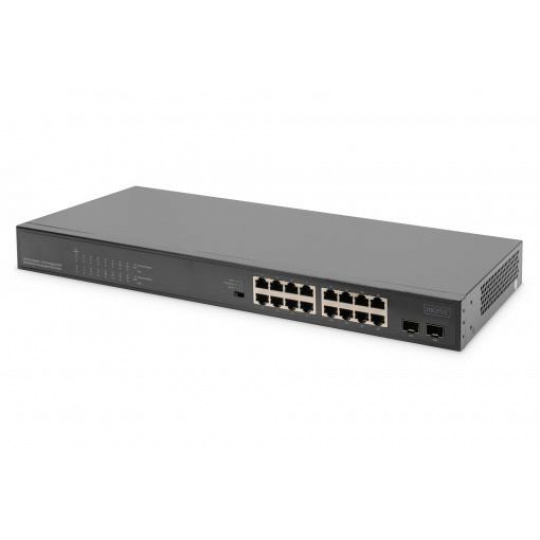

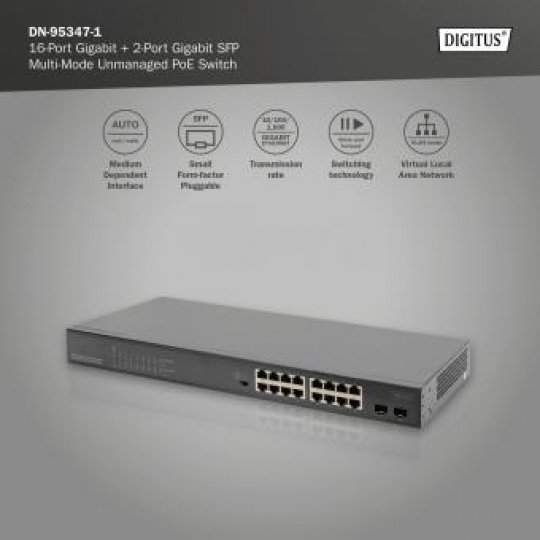

16-Port Gigabit + 2-Port Gigabit SFP Unmanaged PoE Switch

Gigabit Ethernet PoE Switch 16-port PoE + 2-port SFP, 247W PoE budget

Thanks to the PoE function, no additional power supply unit is required for the connected devices Minimize cabling for wireless APs, IP telephones, and any other PoE capable device
Supporting Normal mode, VLAN mode and Extend mode, flexible to switch
PoE power budget: 247 Watts
Gigabit Ethernet Speed
Additional 2 port SFP-Uplink for Fiber Technology

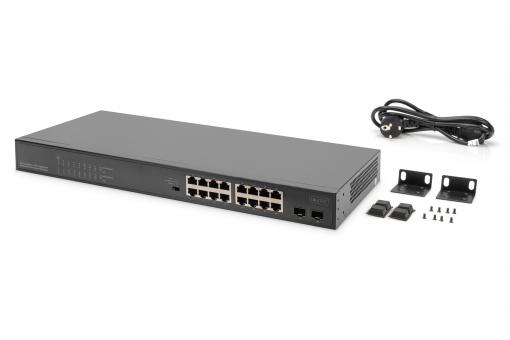

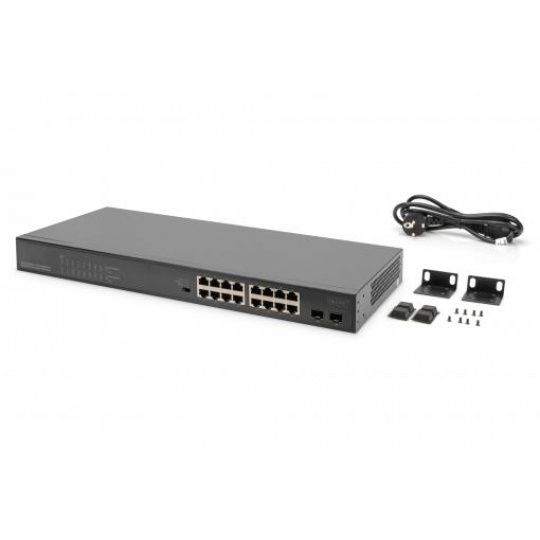

Rack mountable in system rack (1U)
2 adaptive 1000 Mbps fiber optic ports;
The UTP port supports the auto-negotiation function and automatically configures the transmission mode and the transmission rate;
Use of Store-and-Forward architecture

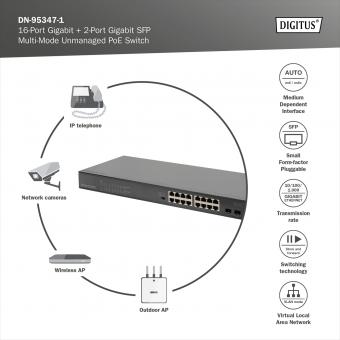

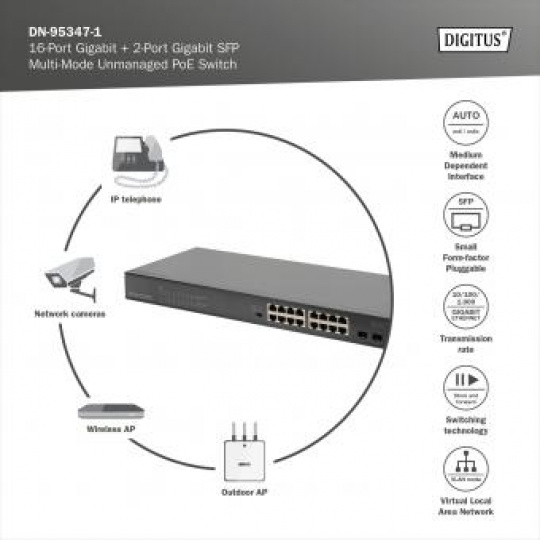

"The DIGITUS 16-Port Gigabit Rack mount Switch with sixteen Power over Ethernet ports and two additional SFP Fiber Port, offers your network significant improvement in terms of performance and efficiency. Thanks to PoE support, you only need a single (network) cable for power and data transfer. This switch makes it much easier to connect devices such as access points, network cameras, and IP telephones, and requires far less cabling than alternatives. It also allows you to extend your network in places where there are no power supply cables or sockets available. The switch does not require any configuration and therefore guarantees quick and seamless integration into the network. Moreover, can be manually switched to a Normal mode, or Flow Control mode, or VLAN mode to suitable for various occasions flexibly. Based on Gigabit Ethernet Technology, it is essential to helping solve network bottlenecks that frequently develop as more advanced computer users and newer applications continue to demand greater network resources."


TECHNICAL DETAILS
Comply with IEEE 802.3i, IEEE 802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x, IEEE802.3az standards
Support IEEE802.3af, IEEE802.3at standards
Supporting Normal mode, VLAN mode and Extend mode, flexible to switch
The maximum output power of a single port is 30W, and the total output power of PoE is 247W
Flow control method: Full-duplex adopts IEEE 802.3x standard, half-duplex adopts Backpressure standard
Support MAC address self-learning
16 x 10/100 /1000 Mbps self-adaptive RJ45 ports, support port auto flip (Auto MDI / MDIX)
The UTP port supports the auto-negotiation function and automatically adjusts the transmission mode and transmission rate
Use store-and-forward architecture
Backplane: 36Gbps
Packet forwarding rate: 26.784Mbps
Packet Cache: 4.1Mbit
Mac address table: 8K
Jumbo frame: 10K Bytes

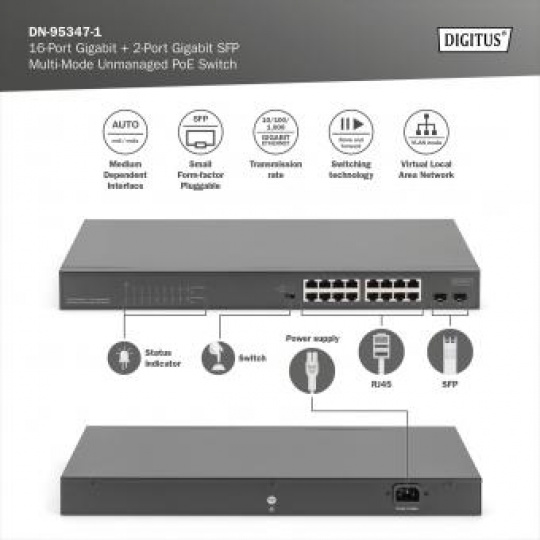

LED indicators for monitoring power, link/activity
Working Mode-Normal mode: Enable Flow Control and all ports can communicate with each other.
Working Mode-Flow Control mode: Disable Flow Control and all ports can communicate with each other.
Working Mode-VLAN mode: Port 1-16 cannot communicate with each other, but can communicate with the uplink port 17F-18F.

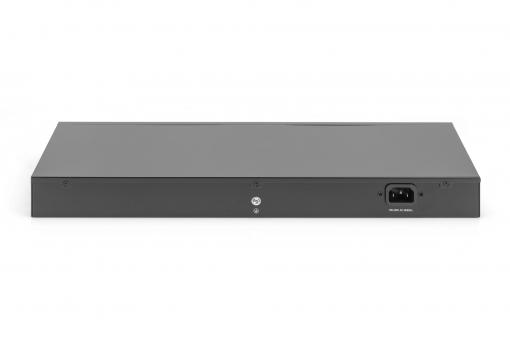

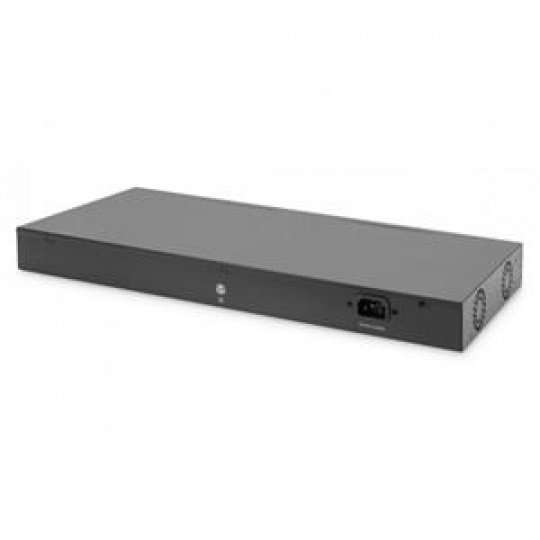

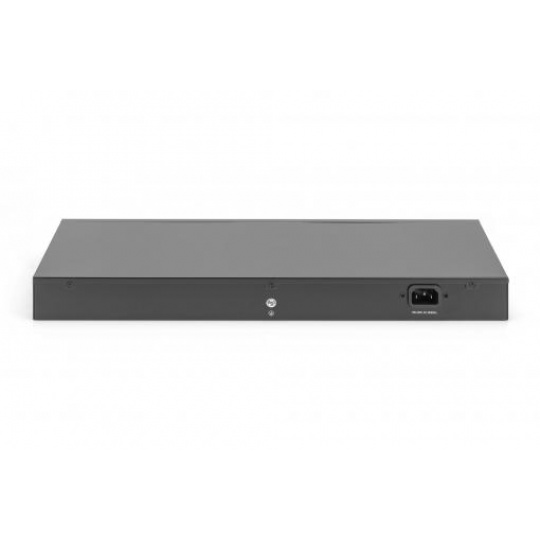

Power supply: AC 100-240V 50 / 60Hz Built-in power
Power consumption: Max (full load on the port): 297W (220V / 50Hz)
Dimensions: 440 * 240 * 44mm
Number of ports: 16
Industrial usage: no
Managed: no
Outdoorsuitable: no
PoE (Power over Ethernet): no
Protection against vanadlism: no
VLAN: no
