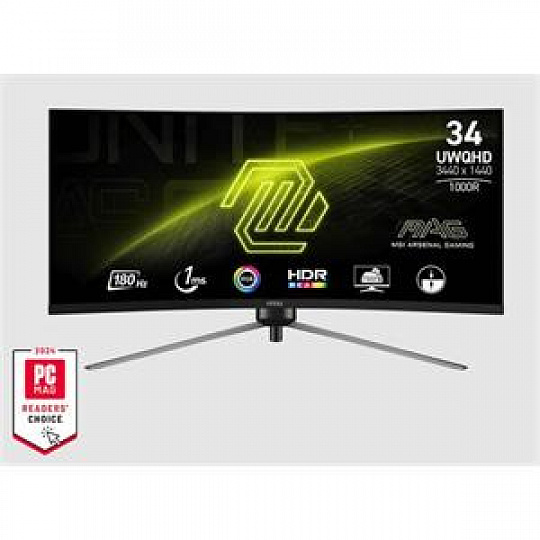

MSI Gaming MAG 346CQDF E20, 34" Rapid VA zakřivený /3440x1440(UWQHD)/200Hz/0,5ms/DP/2xHDMI/černá

Website Name MAG 346CQDF E20
Color ID1/Black-Black
Local Dimming NA
Display
Screen Size 34" (86.36 cm)
Active Display Area (mm) 797.22(H) x 333.72(V)
Curvature Curve 1500R
Panel Type Rapid VA
Resolution 3440x1440 (UWQHD)
Pixel pitch (mm) 0.23175(H)x0.23175(V)
Aspect Ratio 21:9
Dynamic Refresh Rate technology AMD FreeSync™ Premium
Dynamic Refresh Rate Activated Range UWQHD (3440 x 1440) : 48~200Hz / HD (1720 x 720) : 48~400Hz
HDR (High dynamic range) HDR Ready
SDR Brightness (nits) 300
HDR Brightness (Peak nits) -
Contrast Ratio 4000:1
DCR (Dynamic Contrast Ratio) 100000000:1
Signal Frequency UWQHD:71.6~298 KHz(H) / 48~200 Hz(V), HD:36.5~304 KHz(H) / 48~400 Hz(V)
Refresh Rate UWQHD (3440 x 1440): 200Hz, HD (1720 x 720): 400Hz
Response Time (MPRT) 1ms(MPRT)
Response Time (GTG) 0.5ms (Min.)
Response Time (Tr + Tf) 14.863ms
View Angles 178°(H)/178°(V)
NTSC (CIE1976 area percentage/overlap) 105%/80%
NTSC (CIE1931 area percentage/overlap) 85%/75%
sRGB (CIE1976 area percentage/overlap) 120%/95%
sRGB (CIE1931 area percentage/overlap) 120%/95%
Adobe RGB (CIE1976 area percentage/overlap) 100%/85%
Adobe RGB (CIE1931 area percentage/overlap) 85%/80%
DCI-P3 (CIE1976 area percentage/overlap) 97%/95%
DCI-P3 (CIE1931 area percentage/overlap) 88%/85%
Rec.709 (CIE1976 area percentage/overlap) 120%/95%
Rec.709 (CIE1931 area percentage/overlap) 120%/95%
Rec.2020 (CIE1976 area percentage/overlap) 68%/68%
Rec.2020 (CIE1931 area percentage/overlap) 60%/60%
Quantum Dot Film NA
Surface Treatment Anti-glare
Touch Screen Non-touch
Display Colors 1.07B
Color bit 10 bits (8 bits + FRC)
Note_DP UWQHD:3440 x1440 (Up to 200Hz), HD:1720 x 720 (Up to 400Hz)
Note_HDMI UWQHD:3440 x1440 (Up to 100Hz), HD:1720 x 720 (Up to 400Hz)
Note_DVI N/A
VESA DisplayHDR NA
VESA ClearMR NA
Delta E NA
I/O Ports
HDMI 2
HDMI version 2.0b
HDMI HDCP version 2.3
DisplayPort 1
DisplayPort version 1.4a (HBR3)
DisplayPort HDCP version 2.3
Thunderbolt NA
Thunderbolt version NA
Thunderbolt HDCP version NA
USB Type C (DisplayPort Alternate) NA
DVI NA
D-Sub NA
Line-in NA
Mic-in NA
Mic-in upstream NA
Headphone-out 1
Audio Combo NA
USB 2.0 Type A NA
USB 2.0 Type B NA
USB 2.0 Micro USB Type B N/A
USB 2.0 Type C NA
USB 3.2 Gen 1 Type A NA
USB 3.2 Gen 1 Type B NA
USB 3.2 Gen 1 Type C NA
USB 3.2 Gen 2x2 Type C NA
USB 3.2 Gen 2x2 Type A NA
Card reader NA
Lock type Kensington Lock
Speaker NA
Webcam NA
Lan Port NA
Power
Country EU
Territory EU
Entity EU OBD
Power Type Internal Power Board
Power Input 100~240V, 50/60Hz
On-mode Power Consumption (KWh/1000h) 31
Annual Energy Consumption (KWh) 45
Standby-mode Power Consumption (W) 0.5
Off-mode Power Consumption (W) 0.3
Energy Efficiency Rating F
Adapter's KC safety Number NA
Power Cord Type C13
QC Output NA
QC Output Power NA
PD Output NA
PD Output Power NA
Warranty
Warranty 36M
Design
Adjustment (Tilt) -5° ~ 20°
Adjustment (Swivel) NA
Adjustment (Height) NA
Adjustment (Pivot) NA
VESA Mounting 100x100mm
Frameless Design Yes
Console Mode YES
HDMI CEC YES
Firmware Update YES
Stand Attachment Method Toolless locking
Stand Type Low-profile (Tilt only)
Stand with Integrated Mini PC Mount NA
KVM Version NA
PIP/PBP Support
Optix Scope Support
Smart Crosshair Support
Remote Display NA
AI Gaming AI Vision
MSI OLED Care NA
Scaler FW Update Update by Firmware Update Utility (DP)
Carton
Carton Item (SG14) SG14-M1S234A-MNT
pcs/Carton 1
Pallet
pallet Q'ty (by air) pcs 18
Q'ty/20cy (by air) pcs 180
Q'ty/40cy (by air) pcs 378
Dimension (L)(by air) mm 1219
Dimension (W)(by air) mm 1016
Dimension (H)(by air) mm 1413
Net Weight (by air) kg 139
Gross Weight (by air) kg 203
pallet Q'ty (by sea) pcs 30
Q'ty/20cy (by sea) pcs 300
Q'ty/40cy (by sea) pcs 630
Dimension (L)(by sea) mm 1219
Dimension (W)(by sea) mm 1016
Dimension (H)(by sea) mm 2179
Net Weight (by sea) kg 214
Gross Weight (by sea) kg 321
Dimension & Weight (product)
Product Dimension with Stand (WxDxH) (mm) 808.00 x 269.49 x 458.82
Product Dimension with Stand (WxDxH) (inch) 31.81 x 10.61 x 18.06
Product Dimension without Stand (WxDxH) (mm) 808.00 x 111.93 x 363.92
Product Dimension without Stand (WxDxH) (inch) 31.81 x 4.41 x 14.33
Stand Dimension (WxDxH) (mm) 379.66 x 269.49 x 138.87
Stand Dimension (WxDxH) (inch) 14.95 x 10.61 x 5.47
Weight (Net kg) 6.37
Weight (Net lbs) 14.04
Weight Without Stand (kg) 5.6
Weight Without Stand (lbs) 12.35
Dimension & Weight (box)
Inside Carton Dimension (WxDxH) (cm) 92 x 17 x 46.8
Inside Carton Dimension (WxDxH) (inch) 36.22 x 6.69 x 18.43
Outer Carton Dimension (WxDxH) (cm) 94 x 19 x 50.1
Outer Carton Dimension (WxDxH) (inch) 37.01 x 7.48 x 19.72
Weight (Gross kg) 9.93
Weight (Gross lbs) 21.89
Accessories
DisplayPort Cable 1
DisplayPort Cable Version 1.4a
HDMI Cable 0
HDMI Cable Version NA
DVI Cable 0
DVI Cable Version NA
USB Type A to Micro USB Type B cable 0
USB Type A to Type B Cable 0
USB Type C to Type A Cable 0
USB Type C to Type C Cable 0
Thunderbolt Cable 0
VGA Cable 0
3.5mm audio Cable 0
3.5mm combo audio Cable 0
3.5mm Mic Cable 0
Power Cord 1
AC Adaptor 0
Quick Guide 1
Warranty Card 0
Mouse Bungee Unit 0
VESA Screw 0
Switch Case 0
Portable Screen Protection Case 0
Monitor Hood 0
Speaker (Accessories) 0
Model Info
Segment Name2 MAG 346CQ E20
Segment Name MAG
Series Name LCD
Segment Name3 MAG 346CQDF E20
Extra Info
EOL Date
Barcode Info
UCC14 10824142451141
UPC 824142451144
JAN
EAN 4711377414739
