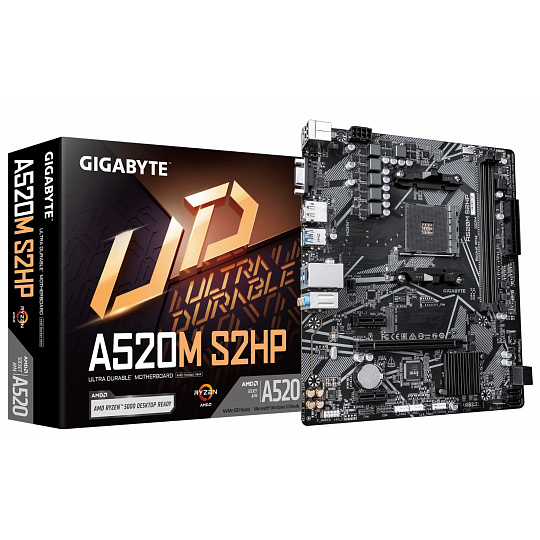

Gigabyte A520M S2HP

Chipset: AMD A520Rozměrový formát: Micro ATX Form Factor; 24.4cm x 20.5cm
Podpora pro procesory:

*AMD Ryzen™ 5000 G-Series Processors/
*AMD Ryzen™ 5000 Series Processors/
*AMD Ryzen™ 4000 G-Series Processors/
*AMD Ryzen™ 3000 G-Series Processors/
*AMD Ryzen™ 3000 Series Processors
Patice procesoru: AM4

Paměť:

*2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity)
*Podpora pro DDR4 3200/2933/2667/2400/2133 MT/s memory modules
*Dual channel memory architecture
*Podpora pro ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
*Podpora pro non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
*Podpora pro Extreme Memory Profile (XMP) memory modules
Grafické porty:Integrated Graphics Processor with AMD Radeon™ Graphics support:

*1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
*1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz
*1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Zvuková karta:

*Realtek® Audio CODEC
*High Definition Audio
*2/4/5.1/7.1-channel
Ethernet: Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
WLAN + Bluetooth: Ne

Rozšiřující sloty: CPU:

* 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16
Chipset:

*2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2)
RAID řadič: RAID 0, RAID 1, RAID 10

Úložný prostor:

*1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2280
*SATA and PCIe 3.0 x4/x2 SSDs
*4 x SATA 6Gb/s connectors
USB: CPU:

*4 x USB 3.2 Gen 1 ports on the back panel
Chipset:

*2 x USB 3.2 Gen 1 ports available through the internal USB header
*6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Interní porty: Napájení

*1× 24-pin ATX main power connector
*1× 8-pin ATX 12V power connector
*1× CPU fan header
*2× system fan headers
Související s úložištěm

*1× M.2 Socket 3 connector
*4× SATA 6Gb/s connectors
USB

*1× USB 3.2 Gen 1 header
*2× USB 2.0/1.1 headers
Ostatní

*1× front panel header
*1× front panel audio header
*1× Trusted Platform Module header
*1× serial port header
*1× speaker header
*1× chassis intrusion header
*1× Clear CMOS jumper
Porty na zadním panelu:

*1 x PS/2 keyboard/mouse port
*1 x D-Sub port (Note)
*1 x DisplayPort (Note)
*1 x HDMI port (Note)
*4 x USB 3.2 Gen 1 ports
*2 x USB 2.0/1.1 ports
*1 x RJ-45 port
*3 x audio jacks
BIOS:

*1 x 128 Mbit flash
*Use of licensed AMI UEFI BIOS
*PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

H/W Monitoring:


*Voltage detection
*Temperature detection
*Fan speed detection
*Overheating warning
*Fan fail warning
*Fan speed control
OS: Podpora pro Windows 11 64-bit / Windows 10 64-bit
