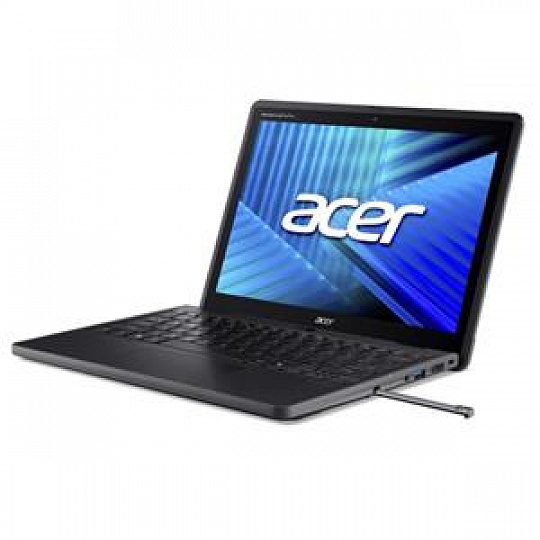

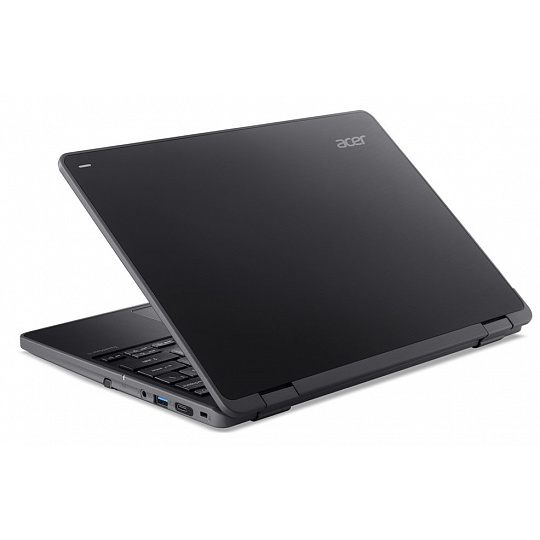

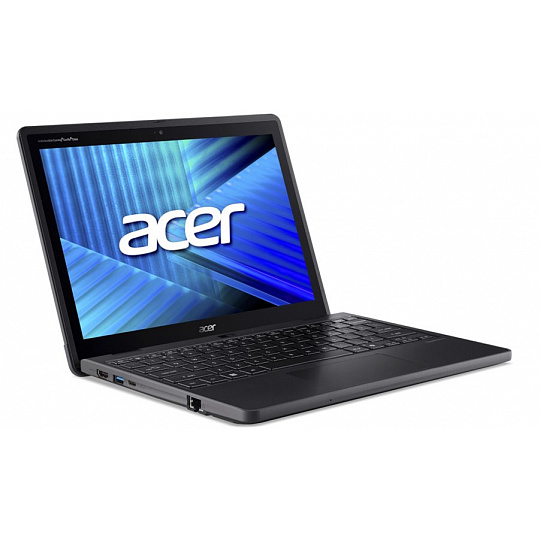

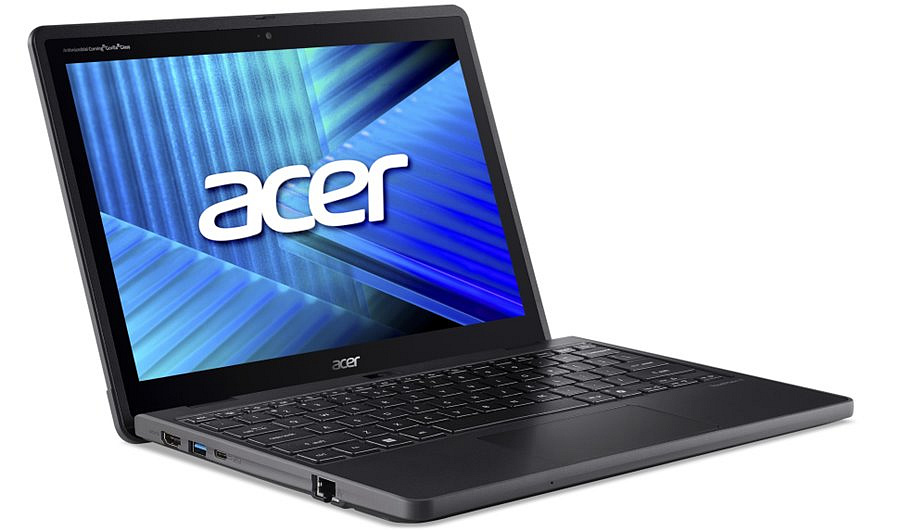

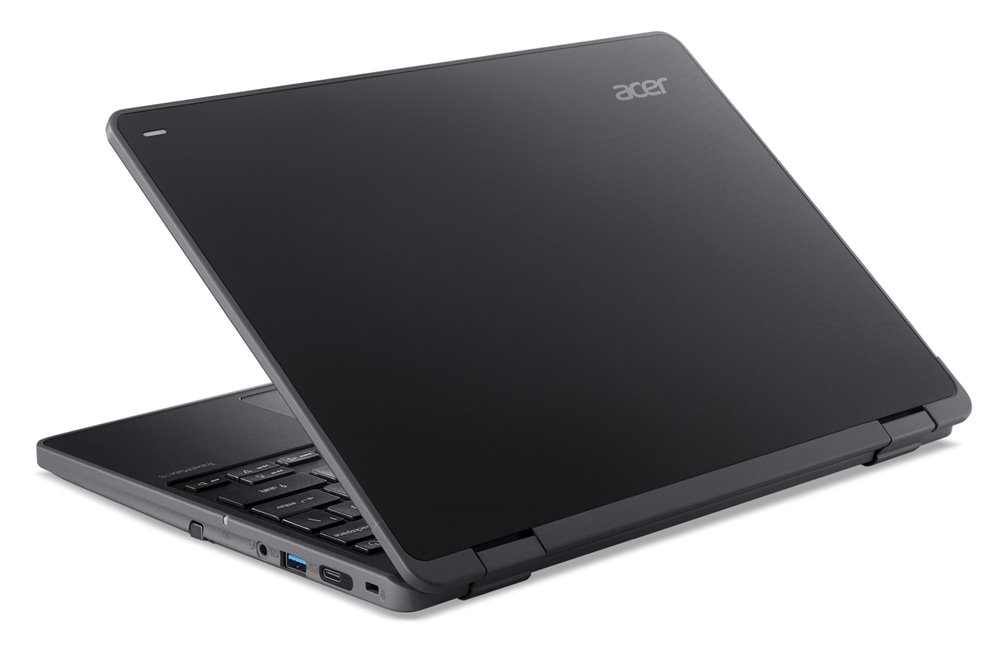

TravelMate Spin B3 (TMB312RN-31-TCO-C7AN) - Windows 11 Professional 64-bit EDU - Intel® Processor N150 - 8 GB LPDDR5X Memory On Board + N/A - 256 GB PCIe NVMe SSD PM4 + N/A - microSD card reader - 12,2" WUXGA 1920x1200 IPS Glare 72%NTSC 300nits Touch Antimicrobial Corning® Gorilla® Glass with Active Wacom AES 1.0 Pen garaged in body - Intel® Graphics - Wifi 6E Intel AX211 802.11ax 2x2 CNVi + BT 5.3 LE Audio - FHD USB TNR Camera with camera shutter and 2 Mic. + 5MP Auto-Focus Rear Camera - 2x USB 3.2 Gen1 -2x USB Type-C™ port supporting: USB 3.2 Gen 1 (up to 5 Gbps) / DisplayPort over USB-C / USB charging 5/9/12/15/20 V; 3,25 A / DC-in port 5/9/15/20 V; 65 W with USB Type-C docking support - HDMI 2.1 - voděodolná klávesnice až 330ml - OceanGlass™ Touchpad - TPM 2.0 - 53Wh Li-Ion battery - 65W USB Type-C AC Adapter PCR50% TCO9.0 - MIL-STD certification - TCO certified - Ruggedized ports + body - Anchored keys - Shale Black with texture (Convertible laptop)
RJ-45

Operating 1 Windows 11 Pro EDU

CPU and chipset
Intel® Processor N150 (6 MB Smart Cache, 0.8 GHz with Intel® Turbo
Boost Technology 2.0 up to 3.6 GHz)

Memory
• 8 GB of onboard LPDDR5 system memory

12.2" display with IPS (In-Plane Switching) technology, WUXGA 1920 x
1200 resolution, LED-backlit TFT LCD with integrated multi-touch
Wide viewing angle
16:10 aspect ratio
Mercury free, environment friendly
Antimicrobial Corning® Gorilla® Glass
Graphics Intel® Graphics

Audio • Acer Purified.Voice technology with two built-in microphones.
Features include far-field pickup, keystroke suppression, voice
tracking, adaptive beam forming, voice recognition enhancement,
three pre-defined modes: voice recognition, personal call, conference
call
• Built-in digital microphone on world facing camera (Optional)
• Acer TrueHarmony technology for lower distortion, wider frequency
range, headphone-like audio and powerful sound
• Two built-in stereo speakers
• Certified for Microsoft Teams

Storage • 256 GB, PCIe Gen4 16 Gb/s up to 4 lanes, NVMe 1, 6
Webcam 1 Video conferencing
Wireless and 1 WLAN
networking • Intel® Wireless Wi-Fi 6E AX211
• 802.11 a/b/g/n/ac/ax wireless LAN
• Band: 2.4 GHz, 5 GHz, and 6 GHz
• 2x2 MU-MIMO technology
• Intel® Wi-Fi 7 Wireless LAN
• 802.11 a/b/g/n/ac/ax/be
• Band: 2.4 GHz, 5 GHz, and 6 GHz
• 2x2 MIMO technology
LAN
• Gigabit Ethernet
WPAN
Supports Bluetooth® 5.3 or above for Wi-Fi 6E wireless card.
Supports Bluetooth LE Audio (LC3).
Security Acer ProShield Plus security manager includes:
• Data Protection: File & Folder Encryption and Decryption, Personal
Security Drive
• Data Removal: File Shredding
• Security Alert: Invalid Access Alert, Security Report
Discrete Trusted Platform Module (TPM) solution 1
Camera shutter
BIOS user, supervisor, HDD(OPAL) password
Kensington lock (Nano-type)
Dimensions and 1, 7, 8 Dimensions
weight • 296 (W) x 215 (D) x 19.9/21.5 (H) mm (11.65 x 8.46 x 0.78/0.85
inches)
Weight
• 1.45 kg (3.2 lbs.) with 3-cell battery pack

Power adapter Power adapter
and battery
3-pin 65 W PD PCR 50%, TCO 9.0 AC adapter
• 5 V / 3 A or 9 V / 3 A or 12 V / 3 A or 15 V / 3 A or 20 V / 3.25 A as
output power
• 90.0 (W) x 51.0 (D) x 28.5 (H) mm (3.54 x 2.01 x 1.12 inches)
• 192 g ± 10% with 150 cm DC cable
• Black color with Acer logo
• Brick type AC pins

Battery
• 53 Wh 3-cell Li-ion battery
• Supports Fast Charging technology
• For models with WUXGA Panel
Battery life:
Up to 21 hours (based on video playback test results)
Up to 11 hours (based on web browsing test results)
9, 10, 11
Input and control Keyboard
81-/82-/86-key Acer FineTip EDU anchored frame Serviceable keyboard
2.0 with international language support
Control Keys
Copilot Key
TouchPad
Multi-gesture touchpad, supporting two-finger scroll; pinch; gestures to
open Cortana, Action Center, multitasking; application commands
• Microsoft Precision Touchpad certification
• Moisture resistant
• OceanGlass™ Touchpad

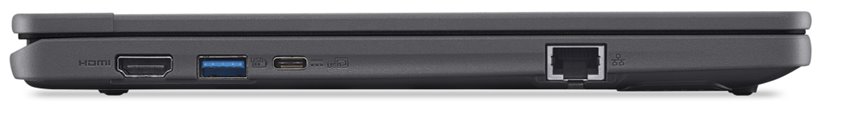

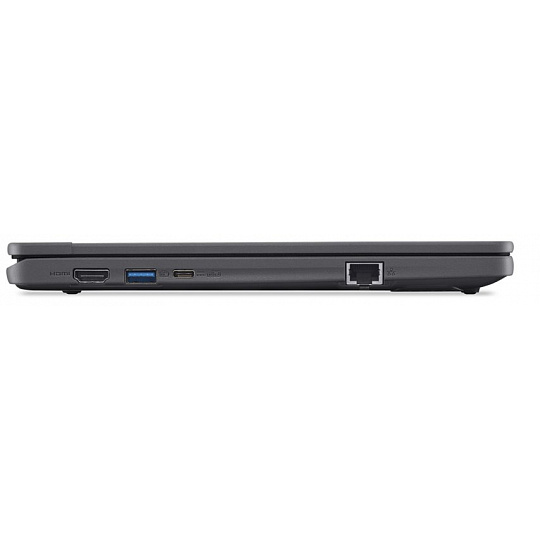

Input and output USB Type-C
USB Type-C™ port supporting:
• USB 3.2 Gen 1 (up to 5 Gbps)
• DisplayPort over USB-C
• USB charging 5/9/12/15/20 V; 3.25 A
• DC-in port 5 or 9 or 15 or 20 V; 65 W
Two USB Type-C™ ports
Two USB Standard-A ports, supporting:
• Two ports for USB 3.2 Gen 1
Headphone/speaker jack
Ethernet (RJ-45) port

Options and Accessory
accessories Acer Active Pen
• Length: 125.41 mm (with customized endcap); diameter: 5.3 mm
• Weight: 4 g (with customized endcap)
• Tip material: Elastomer
• Pen force: 4096 levels
• Two configurable buttons
• Not replaceable Li-ion battery charging
• Protocol: AES 2.0, USI 2.0

Support Acer Vero MST Dock M32
· Dimension: 180 (W) x 82 (D) x 24.8 (H) mm ((7.09 x 3.23 x 0.98 inches)
· Weight: 232 g (0.52 lbs)
· Built with 65% Post-consumer Recycled (PCR) Plastic
