Display

Model

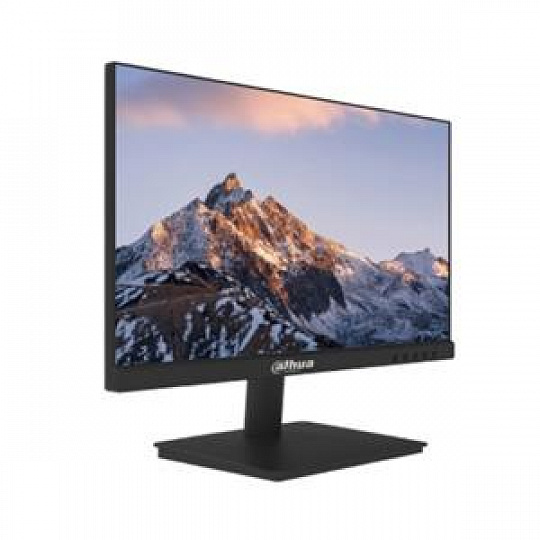

DHI-LM27-A221Y

LCD Technology

IPS

Backlight

ELED

Screen Size

27 inch

Aspect Ratio

16:9

Viewing Size

597.888 (H) × 336.312 (V) mm

Screen-to-Body Ratio

?85%

Viewing Angle

178° (H)/178° (V)

Display Mode

Horizontal

Pixel Pitch

0.3114 mm × 0.3114 mm

Pixels Per Inch

81.59

Resolution

1920 (H) × 1080 (V)

Refresh Rate

120 Hz, overclocked to 144 Hz

Display Color

6 bit + FRC

Color Gamut

72% NTSC (typ.)

Brightness

250 cd/m2 (typ.)

Contrast Ratio

1200:1

Response Time

MPRT 1 ms

Lifespan

30,000 hrs

Operation Hours

7 × 16 H

Surface Treatment

Haze 25%, 3H

Flicker-free Technology

Yes

Device Ports

Input Port

1 × VGA (1920 × 1080@75 Hz), 1 × HDMI 1.4 (1920 × 1080@144 Hz),

Power & Environmental Conditions

Power Supply

12 VDC, 3 A

Power Type

Power adapter

Power Consumption

20.0 W (basic), 27.1 W (typ.), 28.0 W (max)

Standby Power Consumption

<0.5 W

Operating Temperature

0 °C to +40 °C (+32 °F to +104 °F)

Operating Humidity

10%-85% (RH)

Storage Temperature

–20 °C to +60 °C (–4 °F to +140 °F)

Storage Humidity

5%–90% (RH)

General

Inclined Angle

-5°/20°

Product Dimensions

615.1 mm × 364.1 mm × 49.1 mm (24.22" × 14.33" × 1.93") (W × H × D), without wall-mount bracket

Package Size

678 mm × 450 mm × 118 mm (26.70" × 17.72" × 4.65") (W × H × D)

Frame Width

U/L/R/D:2.8 mm/2.8 mm/2.8 mm/18.2 mm

Net Weight

3.4 kg (7.50 lb)

Gross Weight

4.7 kg (10.36 lb)

Casing Color

Black

Control Mode

Joystick

Status Indicator Light

Yes

Wall Mount VESA

100 mm × 100 mm (3.94" × 3.94")

Accessory

Power adapter, base, HDMI cable, user's manual(QR code), Energy efficiency label,QSG,legal and regulatory information etc.

Optional Accessory

Wall mount
