POPIS:

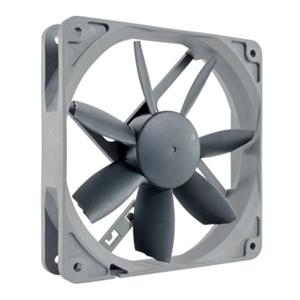

Specifically designed for low impedance case cooling applications, the classic NF-S12B is a long-standing favourite among enthusiast users around the world and helped to found Noctua’s reputation as a top-tier manufacturer of premium quality quiet cooling components. The new redux edition reissues this award-winning model in a streamlined, accessibly priced package that has been reduced to the essential core: the NF-S12B premium fan. Its industry grade SSO bearing, over 150.000 hours MTBF rating and full 6 years manufacturer’s warranty make the NF-S12B redux a proven premium choice that provides trusted Noctua quality at an attractive price point. The 1200rpm PWM version features Noctua’s proprietary NE-FD1 for automatic speed control, which allows to strike a perfect balance between high cooling capacity and low noise operation in each given situation.


Size: 120x120x25 mm
Connector: 4-pin PWM
Bearing: SSO
Rotational Speed (+/- 10%): 1200 RPM
Min. Rotational Speed (PWM, +/-20%): 400 RPM
Airflow: 100,6 m^(3)/h
Acoustical Noise: 18,1 dB(A)
Static Pressure: 1,31 mm H2O
Max. Input Power: 0,9 W
Max. Input Current: 0,075 A
Voltage: 12 V
MTBF: > 150.000 h
Scope of Delivery:
• Fan
• 4 Fan Screws
