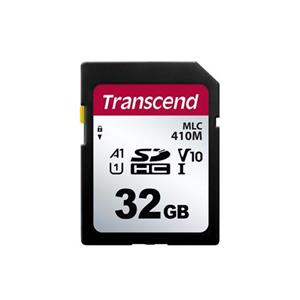

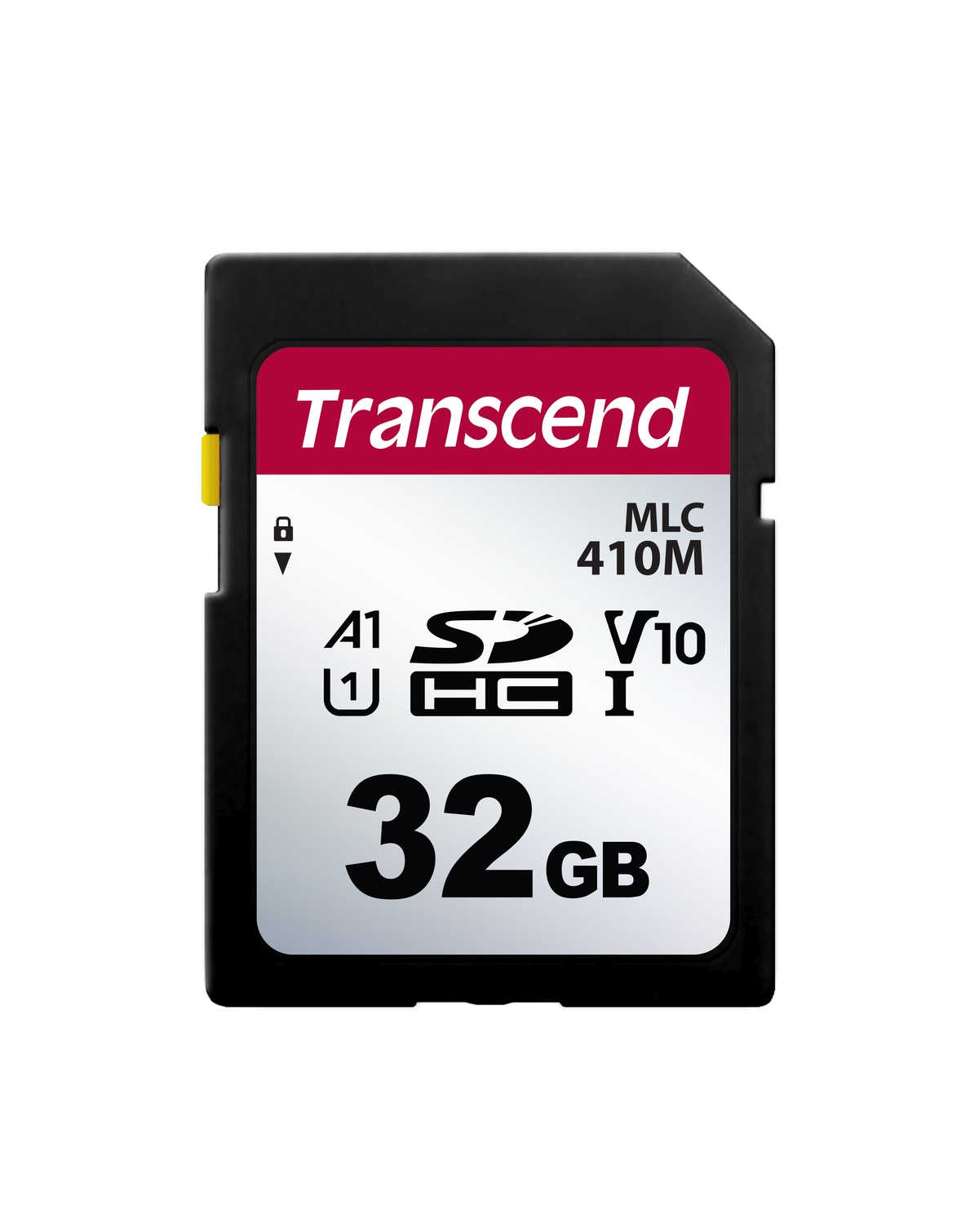

Transcend 32GB SDHC410M UHS-I U1 (Class 10) V10 A1 3K P/E MLC průmyslová paměťová karta (bez adaptéru), 95MB/s R, 12MB/s, tray balení

Built with top-quality MLC NAND flash chips, Transcend's SD/SDHC410M memory cards can endure operating temperatures from -25°C to 85°C; and set a new standard for consistent, long-term performance even in the harshest conditions. Moreover, these cards offer high-speed data transfer rates to satisfy the demanding performance and reliability requirements of embedded systems, such as transportation, telecommunication, and IoT applications.

Technologies:
- Read Disturbance
- Garbage Collection
- Wear Leveling
- Bad Block Management
- Early Move

Firmware Features:
- Built-in ECC (Error Correction Code) functionality
- Early Move
- Wear-Leveling

Hardware Features:
- Compliant with RoHS 2.0 standards
- Electrostatic protection (ESD IEC 61000-4-2)
-Compliant with SD specification 5.1
- Compliant with UHS-I
- Compliant with Speed Class 10
- Compliant with Application Performance Class 1 (A1)
- MLC NAND flash
- Endurance: 3K P/E cycles (Program/Erase cycles) guaranteed

Software Solutions:
- Control Center: Improve your control by easily managing devices at anytime from edge to cloud.

Specifications:
Dimensions: 24 mm x 32 mm x 2.1 mm (0.94" x 1.26" x 0.08")
Weight: 2 g (0.04 oz)
Form Factor: SD flash card
Flash Type: MLC NAND flash
Capacity: 32 GB
Operating Voltage: 2.7V ~ 3.6V
Drop Test : 1.5m free fall
Operating Temperature: Standard -25°C ~ 85°C
Storage Temperature: -40°C ~ 85°C
Humidity: 0% ~ 95%
Shock: Acceleration: 490 m/s2 (standard holding time: 11 ms, semi-sine wave, velocity change: 3.44 m/s)
Vibration (Operating): 20 G (peak-to-peak), 20 Hz ~ 2,000 Hz (frequency)
Power Consumption (Max.): 0.4 watt(s)
Performance:
- Read Speed (Max.): up to 95 MB/s
- Write Speed (Max.): up to 12 MB/s
Terabytes Written (TBW): up to 86 TBW

Note
Speed may vary due to host hardware, software, usage, and storage capacity.
Terabytes Written (TBW) expresses the endurance under the highest capacity.

Certificate : CE/FCC

Due to the complexity and variety of industrial applications, Transcend cannot guarantee 100% compatibility with all platforms and under all scenarios. For special applications and environments, it is strongly suggested that you contact Transcend beforehand for clarification.
